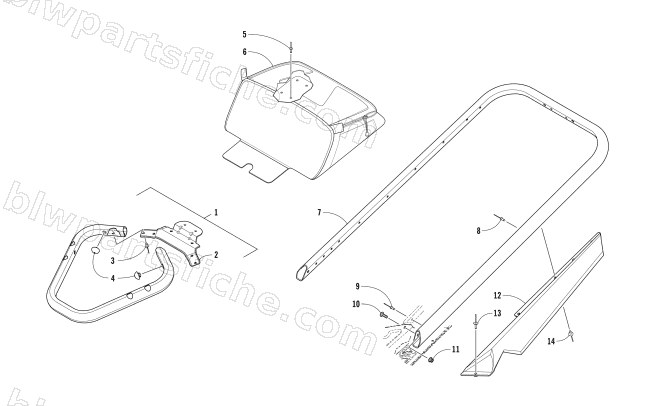

2018 Arctic Cat ZR 9000 SNO PRO 137 — BUMPERS AND STORAGE
2018 ZR 9000 SNO PRO 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 5 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 8 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 9 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 10 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 11 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 12 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 13 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 14 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 |
