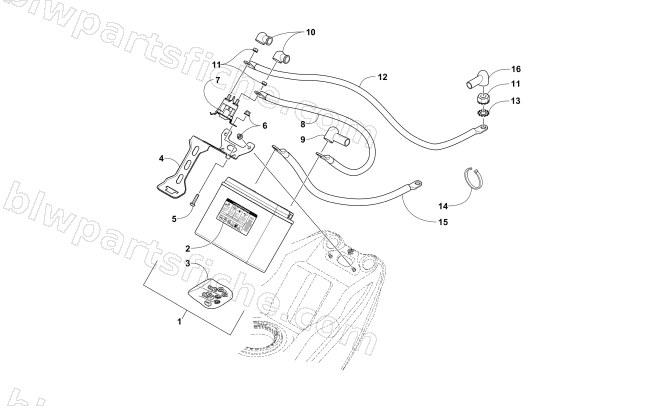

2018 Arctic Cat ZR 9000 SNO PRO 129 — BATTERY AND TRAY ASSEMBLY
2018 ZR 9000 SNO PRO 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0645-722 | BRKT,HOLDDOWN-BATTERY | 1 | $19.25 | |
| 5 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 0645-649 | CABLE,BATTERY-SOLENOID | 1 | $19.25 | |
| 9 | 0645-662 | BOOT,BATTERY CABLE | 1 | $8.95 | |
| 10 | 0645-697 | BOOT,BATTERY CABLE | 1 | $19.25 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 0645-690 | CABLE,SOLENOID/STARTER | 1 | $56.95 | |
| 13 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0645-691 | CABLE,STARTER/GROUND | 1 | $54.95 | |
| 16 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 |
