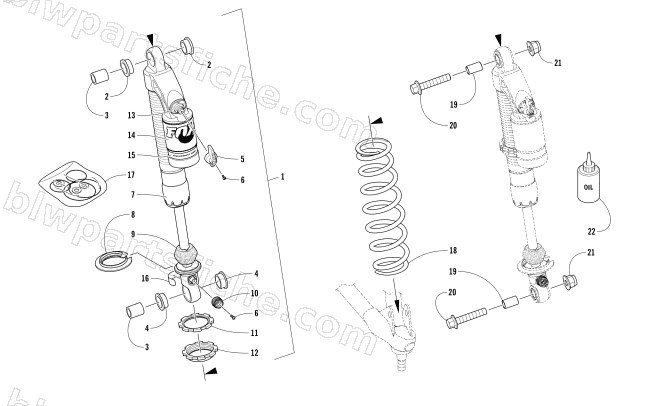

2018 Arctic Cat ZR 9000 RR 137 — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2018 ZR 9000 RR 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 3 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 4 | 3603-283 | BUSHING,EYELET-1.20" X 1.015" X .824 ID | 1 | $26.95 | |
| 6 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 7 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 9 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 10 | 3603-386 | KNOB,DAMPING ADJUST-REBOUND | 1 | $7.30 | |
| 11 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 12 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 14 | 3603-562 | DECAL,RESERVOIR-1.50 X 6.10 KASHIMA W/WA | 1 | $24.77 | |
| 15 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 16 | 3603-561 | DECAL,REBOUND DAMPING-2.80" X 0.50" | 1 | $6.06 | |
| 18 | 3703-485 | SPRING,COMP-120 LB X 10.50"-PTD BLK | 1 | $31.95 | |
| 19 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 20 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 21 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 22 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
