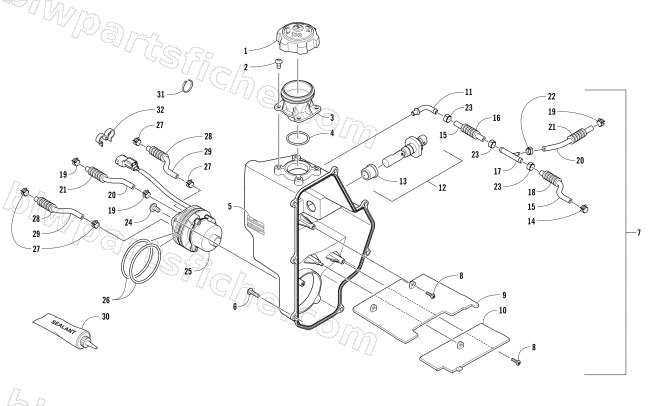

2018 Arctic Cat ZR 8000 SNO PRO ES 137 EARLY RELEASE — OIL TANK ASSEMBLY
2018 ZR 8000 SNO PRO ES 137 EARLY RELEASE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-447 | R/B 2670-643 | 1 | $21.95 | |
| 2 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 3 | 2670-329 | NECK,OIL TANK | 1 | $8.21 | |
| 5 | 0621-786 | DECAL,OIL TANK-C TEC2 OIL | 1 | $3.85 | |
| 6 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 8 | 2623-007 | SCREW,MAG FORM-TSPH-M4X1.5X15 | 1 | $3.16 | |
| 11 | 0913-021 | FITTING, 90 -HOSE BARB | 1 | $15.11 | |
| 12 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 13 | 0609-924 | GROMMET, SWITCH-OIL LEVEL | 1 | $12.35 | |
| 14 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 15 | 0610-968 | HOSE,OIL LINE-7.94IDX11.11OD-25FT | 1 | $84.95 | |
| 16 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 17 | 2670-362 | FITTING, TEE-5/16X5/16X5/32 | 1 | $3.57 | |
| 18 | 1619-359 | CONDUIT,FLEXIBLE-SLIT-1/2"X5' | 1 | $20.63 | |
| 19 | 2623-013 | CLAMP,HOSE-SPRING-CTL 5 | 1 | $1.09 | |
| 20 | 0610-967 | HOSE,OIL LINE-3.8IDX7.9OD-25FT | 1 | $120.95 | |
| 21 | 5706-536 | LOOM,PROTECTIVE-.350 ID SPLIT X 5 FT | 1 | $10.97 | |
| 22 | 2623-246 | CLAMP,HOSE-CRIMP-7.8 TO 9.5 | 1 | $2.06 | |
| 23 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 24 | 8468-613 | SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343 | 1 | $1.50 | |
| 26 | 0930-046 | O-RING,2 5/8 ID X 2 7/8 OD X 1/8"THK | 1 | $20.63 | |
| 27 | 0923-050 | CLAMP, SPRING-6.5MM | 1 | $1.64 | |
| 28 | 1619-356 | LOOM,HIGH TEMP-3/4"X5' | 1 | $59.95 | |
| 29 | 0610-966 | HOSE, OIL LINE-2.54 X 6.3MM-25FT | 1 | $88.95 | |
| 30 | 1048-063 | LOCTITE,5699-GASKET MAKER(70ML) | 1 | $69.95 | |
| 31 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 32 | 2623-176 | CLAMP,C | 1 | $3.16 |
