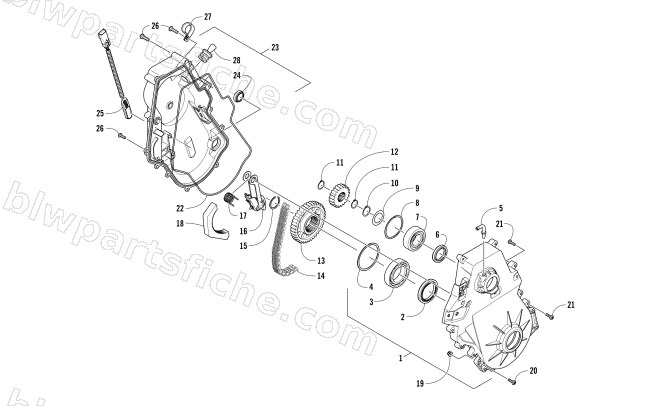

2018 Arctic Cat ZR 8000 SNO PRO ES 137 EARLY BUILD — CHAIN CASE ASSEMBLY
2018 ZR 8000 SNO PRO ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2602-172 | SEAL,OIL-HIGH COMP-50 X 65 X 8MM | 1 | $29.95 | |
| 3 | 2602-281 | BEARING,45 X 75 X 16 - 6009 | 1 | $13.73 | |
| 4 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 5 | 2602-641 | FITTING,VENT-W/CHECK BALL | 1 | $8.21 | |
| 6 | 2602-204 | SEAL,35 X 47 X 7 - V | 1 | $16.49 | |
| 7 | 2602-734 | BEARING,30 X 62 X 20 | 1 | $20.63 | |
| 8 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 10 | 1423-175 | RING,RETAINING-EXTERNAL (30MM SHAFT) | 1 | $1.92 | |
| 11 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 12 | 2602-825 | SPROCKET,BW-21T FWD-(13 WIDE/19 SPLINE) | 1 | $44.95 | |
| 13 | 2602-745 | SPROCKET,BW-41T(13 WIDE/34 SPLINE) | 1 | $127.95 | |
| 14 | 2602-743 | CHAIN,BORG WARNER-86P (13 WIDE) | 1 | $200.95 | |
| 15 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 17 | 2602-336 | SPRING,TORSION | 1 | $1.37 | |
| 18 | 2602-230 | BLOCK,RATCHET-CHAIN ADJ | 1 | $12.35 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 21 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 23 | 1702-497 | COVER,CHAINCASE-2 STROKE-ASSY | 1 | $267.95 | |
| 24 | 2602-232 | GLASS,SIGHT | 1 | $13.73 | |
| 25 | 0730-172 | SENSOR,SPEEDOMETER-KIT | 1 | $79.95 | |
| 26 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 27 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
