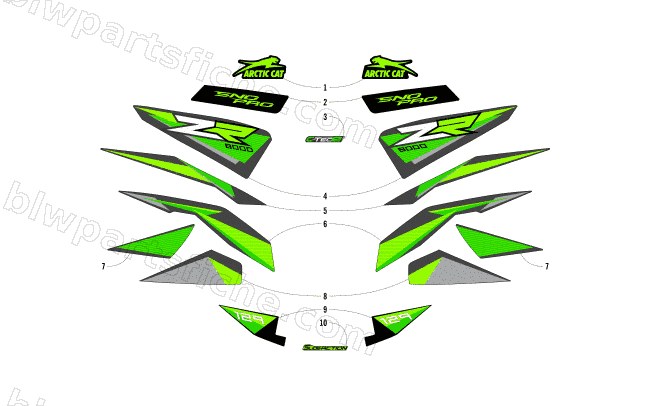

2018 Arctic Cat ZR 8000 SNO PRO ES 129 — DECALS
2018 ZR 8000 SNO PRO ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4621-344 | DECAL,HOOD-FWD UPR-RH | 1 | $2.88 | |
| 1 | 4621-345 | DECAL,HOOD-FWD UPR-LH | 1 | $2.88 | |
| 2 | 4621-332 | DECAL,HOOD-REAR LWR-RH "SNO PRO" | 1 | $5.92 | |
| 2 | 4621-333 | DECAL,HOOD-REAR LWR-LH "SNO PRO" | 1 | $5.92 | |
| 3 | 0621-906 | DECAL,HOOD-"CTEC2"-TA GRN | 1 | $6.75 | |
| 4 | 4621-346 | DECAL,SIDE PANEL-MID FWD-RH | 1 | $24.77 | |
| 4 | 4621-347 | DECAL,SIDE PANEL-MID FWD-LH | 1 | $24.77 | |
| 5 | 4621-342 | DECAL,SIDE PANEL-UPR FWD-RH "8000" | 1 | $32.95 | |
| 5 | 4621-343 | DECAL,SIDE PANEL-UPR FWD-LH "8000" | 1 | $32.95 | |
| 6 | 4621-338 | DECAL,SIDE PANEL-REAR UPR RH | 1 | $12.35 | |
| 6 | 4621-339 | DECAL,SIDE PANEL-REAR UPR LH | 1 | $12.35 | |
| 7 | 4621-348 | DECAL,SIDE PANEL-LWR RR-RH | 1 | $10.97 | |
| 7 | 4621-349 | DECAL,SIDE PANEL-LWR RR-LH | 1 | $10.97 | |
| 8 | 4621-350 | DECAL,SIDE PANEL-LWR FWD-RH | 1 | $15.11 | |
| 8 | 4621-351 | DECAL,SIDE PANEL-LWR FWD-LH | 1 | $15.11 | |
| 9 | 4621-334 | DECAL,REAR TUNNEL-RH "129" | 1 | $16.49 | |
| 9 | 4621-335 | DECAL,REAR TUNNEL-LH "129" | 1 | $16.49 |
