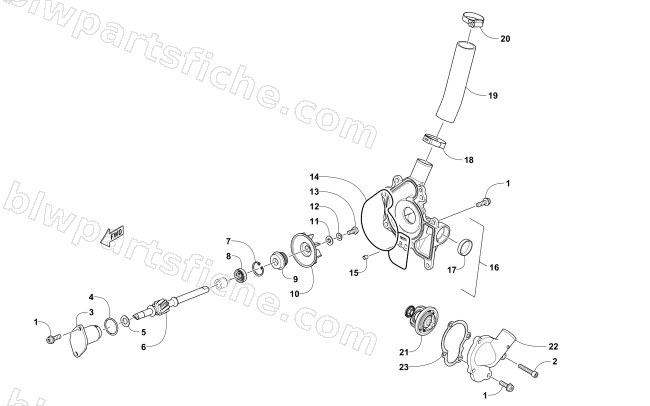

2018 Arctic Cat ZR 8000 LTD ES 129 — WATER PUMP AND THERMOSTAT
2018 ZR 8000 LTD ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0923-025 | SCREW,CAP-TSRDWH M6X1X20 CL 10.9 | 1 | $0.54 | |
| 2 | 0923-027 | SCREW, CAP-TSH M6X1X35 CL10.9 W/2510 | 1 | $4.26 | |
| 3 | 0913-020 | RETAINER, WATER PUMP DRIVEN SHAFT | 1 | $106.95 | |
| 4 | 0930-031 | O RING, 25.1 X 1.78-NBR | 1 | $3.44 | |
| 5 | 0923-036 | SHIM, 10 X 18 X 1 | 1 | $23.39 | |
| 7 | 0931-003 | CIRCLIP, BEARING | 1 | $1.92 | |
| 8 | 0930-004 | R/B 0930-060 | 1 | $16.95 | |
| 9 | 0930-005 | SEAL, WATER PUMP SHAFT MECHANICAL | 1 | $34.95 | |
| 10 | 0913-006 | IMPELLER,WATER PUMP/ W INSERT | 1 | $20.63 | |
| 11 | 0923-011 | WASHER,SEAL WATER PUMP SHAFT | 1 | $6.89 | |
| 12 | 0923-035 | WASHER,M6 X 12-HARDENED | 1 | $5.92 | |
| 13 | 0923-030 | SCREW, CAP-HEX HEAD M6X1.0 SS | 1 | $2.75 | |
| 14 | 0930-025 | O-RING,WATER PUMP COVER | 1 | $3.99 | |
| 15 | 0829-049 | PIN,SOLID DOWEL-M5X8 | 1 | $1.37 | |
| 16 | 1913-004 | COVER,WATER PUMP-MFG ASSY | 1 | $75.95 | |
| 17 | 0818-103 | PLUG, CYLINDER | 1 | $8.21 | |
| 18 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 20 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 21 | 0913-022 | THERMOSTAT - 85 DEG | 1 | $99.95 | |
| 22 | 0913-011 | CAP,THERMOSTAT | 1 | $71.95 | |
| 23 | 0930-026 | GASKET,THERMOSTAT CAP | 1 | $20.63 |
