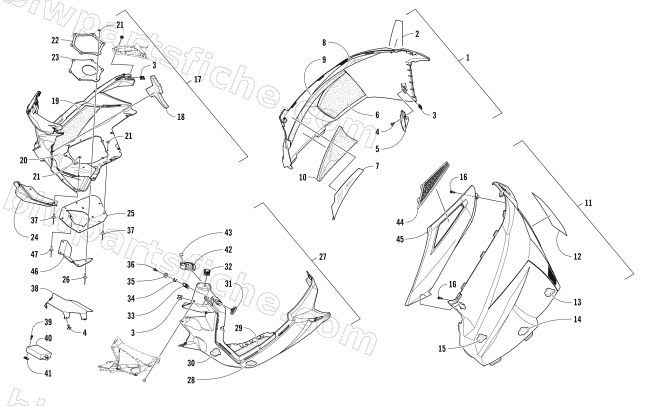

SKID PLATE AND SIDE PANEL ASSEMBLY
2018 ZR 8000 LTD ES 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-564 | PANEL,SIDE-RH BLK-W/DECAL (8000 ZR) | 1 | $323.95 | |
| 1 | 5718-306 | PANEL,SIDE-RH BLK-W/WARNING DECAL-2 STRK | 1 | $266.95 | |
| 3 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 11 | 5718-565 | PANEL,SIDE-LH BLK-W/DECAL (8000 ZR) | 1 | $227.95 | |
| 11 | 5718-031 | PANEL,SIDE-LH BLK-W/WARNING DECAL | 1 | $149.95 | |
| 20 | 3612-328 | FOIL,HEAT-SKID PLATE | 1 | $9.59 | |
| 21 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 22 | 3612-232 | PLATE,EXHAUST OUTLET | 1 | $13.73 | |
| 26 | 8061-712 | RIVET,BLIND-LF SS73 BLACK | 1 | $0.81 | |
| 32 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 36 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 39 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 40 | 0730-296 | ECM,PROGRAMMED-9T/2.86P-8000 | 1 | $2,029.95 | |
| 41 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 42 | 7606-654 | BUMPER,PROTECTOR-RUBBER-8000 | 1 | $25.95 | |
| 43 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 46 | 2712-103 | DEFLECTOR,EXHAUST OUTLET-OUTER-PTD BLK | 1 | $41.95 | |
| 47 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
