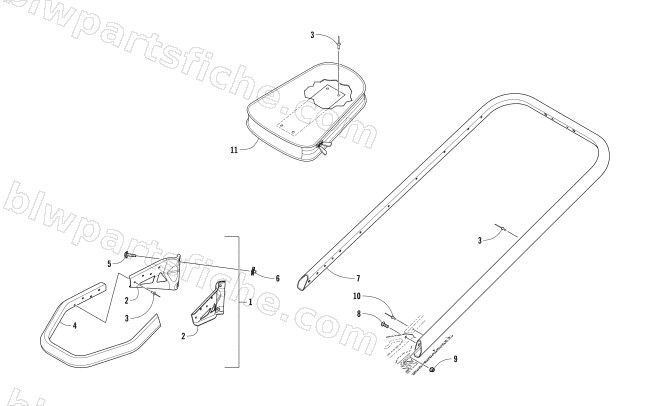

2018 Arctic Cat ZR 7000 137 — BUMPERS AND STORAGE
2018 ZR 7000 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 2 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 7 | 2707-584 | BUMPER,REAR-137"-PTD-BLK | 1 | $101.95 | |
| 8 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 11 | 6606-615 | BAG,BELT | 1 | $46.95 |
