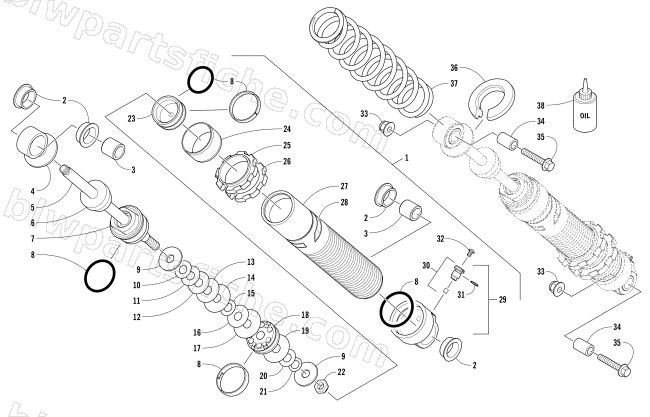

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2018 ZR 6000 ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-469 | SHOCK, SKI 466.8 | 1 | $137.95 | |
| 2 | 3604-738 | BUSHING,REAR SHOCK | 1 | $17.87 | |
| 3 | 3604-737 | SLEEVE - 20.65 OD X 14.5 ID X 24.2 | 1 | $12.35 | |
| 4 | 2603-020 | EYELET,SHOCK-SKI-FORGED | 1 | $73.95 | |
| 5 | 3604-762 | SHAFT,CHROME-12.66MM X 220.7MM | 1 | $154.95 | |
| 6 | 3604-740 | BUMPER,SHOCK - NBR70 | 1 | $16.49 | |
| 7 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 8 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 9 | 3604-789 | WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK | 1 | $3.95 | |
| 10 | 3603-105 | VALVE,SHOCK-20.32 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 11 | 3603-115 | VALVE,SHOCK-22.86 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 12 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 13 | 3603-145 | VALVE,SHOCK-27.94 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-175 | VALVE,SHOCK-31.75 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 15 | 3603-094 | VALVE,SHOCK - 17.78 OD X 0.2 X (9.6ID) | 1 | $6.95 | |
| 16 | 3603-124 | VALVE,SHOCK-25.4 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 17 | 3603-182 | VALVE,SHOCK-33.02DIA X .15 (9.60 ID) | 1 | $6.95 | |
| 18 | 3604-790 | PISTON, 37 BORE-2.35 ORIFICE | 1 | $33.95 | |
| 19 | 3603-174 | VALVE,SHOCK-31.75 OD X .2 (9.6 ID) | 1 | $6.95 | |
| 20 | 3603-106 | VALVE,SHOCK-20.32 OD X .3 (9.6 ID) | 1 | $6.95 | |
| 21 | 2603-015 | VALVE,SHOCK-13.97 OD X 0.5 X (9.6 ID) | 1 | $6.95 | |
| 22 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 23 | 3604-772 | PISTON.FLOAT-ASSY | 1 | $35.95 | |
| 24 | 3604-773 | GUIDE,SPRING-ALUM BODY | 1 | $32.95 | |
| 25 | 2603-014 | RING,PRELOAD LOCK-SHOULDERED | 1 | $53.95 | |
| 26 | 3604-779 | RING,PRELOAD LOCK | 1 | $45.95 | |
| 27 | 3604-757 | BODY,SHOCK-ALUM-37.20 BORE- 252.3MM | 1 | $122.95 | |
| 28 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 29 | 2704-257 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 32 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 33 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 34 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 35 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 36 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 37 | 2703-860 | SPRING,SHOCK-95 LB X 13 "-BLK-PTD | 1 | $60.95 | |
| 38 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
