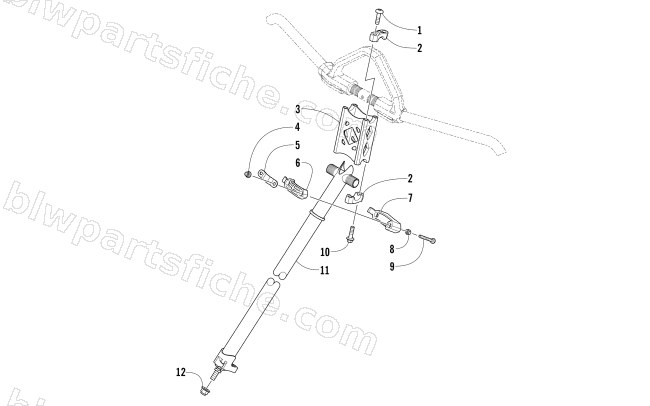

2018 Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) — STEERING POST ASSEMBLY
2018 XF 9000 HIGH COUNTRY LTD 153 (1.75)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8477-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&BLK | 1 | $1.78 | |
| 2 | 1705-461 | CAP,STEERING-PTD BLK | 1 | $15.11 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 6 | 1605-127 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 7 | 1605-154 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.99 | |
| 8 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 9 | 2623-070 | SCREW,MACH-TSPNH-M6X1.0X70 CL 8.8 Z&Y | 1 | $2.47 | |
| 10 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 11 | 1705-522 | POST,STEERING-PTD BLK | 1 | $149.95 |
