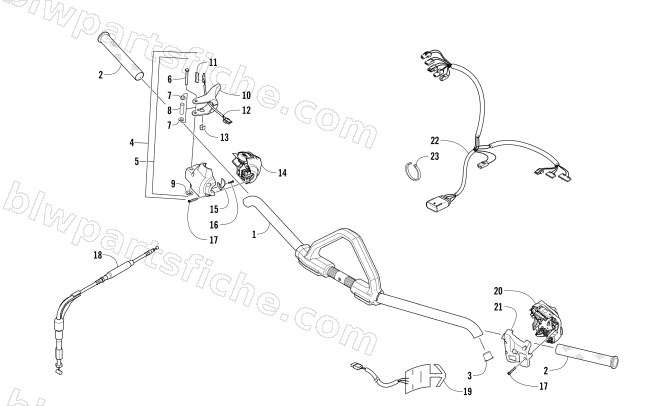

2018 Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) — HANDLEBAR AND CONTROLS
2018 XF 9000 HIGH COUNTRY LTD 153 (1.75)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0609-882 | CONTROL,THROTTLE-R/H-REAR (34MM) | 1 | $105.95 | |
| 5 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 9 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 10 | 0609-795 | LEVER, THROTTLE-34MM | 1 | $46.95 | |
| 11 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 12 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 13 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 14 | 0609-884 | CONTROL, R/H-FRONT W/REV-4 STRK (2010) | 1 | $94.95 | |
| 15 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 16 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 17 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 19 | 0609-948 | ELEMENT,HW-RH H/L | 1 | $89.95 | |
| 19 | 0609-949 | ELEMENT,HW-LH H/L | 1 | $89.95 | |
| 20 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 21 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 23 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 23 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
