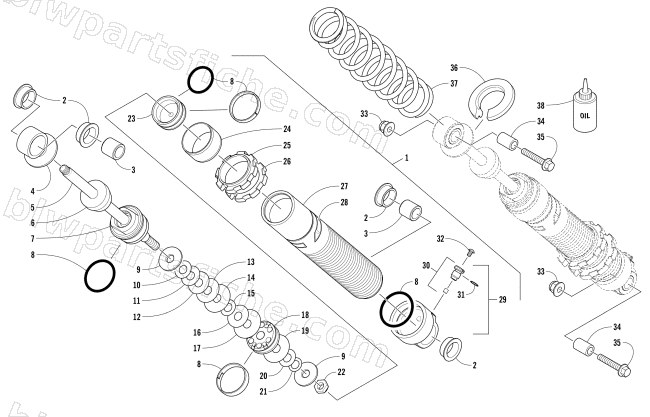

2018 Arctic Cat XF 9000 CROSSTOUR 146 — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2018 XF 9000 CROSSTOUR 146
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-377 | SHOCK, SKI-466.79 | 1 | $137.95 | |
| 2 | 3604-738 | BUSHING,REAR SHOCK | 1 | $17.87 | |
| 3 | 3604-737 | SLEEVE - 20.65 OD X 14.5 ID X 24.2 | 1 | $12.35 | |
| 4 | 2603-020 | EYELET,SHOCK-SKI-FORGED | 1 | $73.95 | |
| 5 | 3604-762 | SHAFT,CHROME-12.66MM X 220.7MM | 1 | $154.95 | |
| 6 | 3604-740 | BUMPER,SHOCK - NBR70 | 1 | $16.49 | |
| 7 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 8 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 9 | 3604-789 | WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK | 1 | $3.95 | |
| 10 | 3603-105 | VALVE,SHOCK-20.32 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 11 | 3603-115 | VALVE,SHOCK-22.86 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 12 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 13 | 3603-145 | VALVE,SHOCK-27.94 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-175 | VALVE,SHOCK-31.75 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 15 | 3603-094 | VALVE,SHOCK - 17.78 OD X 0.2 X (9.6ID) | 1 | $6.95 | |
| 16 | 3603-122 | VALVE,SHOCK-25.4 OD X .15 (9.6ID) | 1 | $6.95 | |
| 17 | 3603-184 | VALVE,SHOCK-33.02 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 18 | 3604-794 | PISTON, 37 BORE-2.7 OIFICE | 1 | $41.95 | |
| 19 | 3603-174 | VALVE,SHOCK-31.75 OD X .2 (9.6 ID) | 1 | $6.95 | |
| 20 | 3603-106 | VALVE,SHOCK-20.32 OD X .3 (9.6 ID) | 1 | $6.95 | |
| 21 | 4604-049 | WASHER, BACKUP 17 OD X 2 X 10.2 ID | 1 | $12.35 | |
| 22 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 23 | 3604-772 | PISTON.FLOAT-ASSY | 1 | $35.95 | |
| 24 | 3604-773 | GUIDE,SPRING-ALUM BODY | 1 | $32.95 | |
| 25 | 2603-014 | RING,PRELOAD LOCK-SHOULDERED | 1 | $53.95 | |
| 26 | 3604-779 | RING,PRELOAD LOCK | 1 | $45.95 | |
| 27 | 3604-757 | BODY,SHOCK-ALUM-37.20 BORE- 252.3MM | 1 | $122.95 | |
| 28 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 29 | 2704-257 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 32 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 33 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 34 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 35 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 36 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 37 | 3703-730 | SPRING,SKI-110#X13-PTD DYN GRAY | 1 | $38.95 | |
| 38 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
