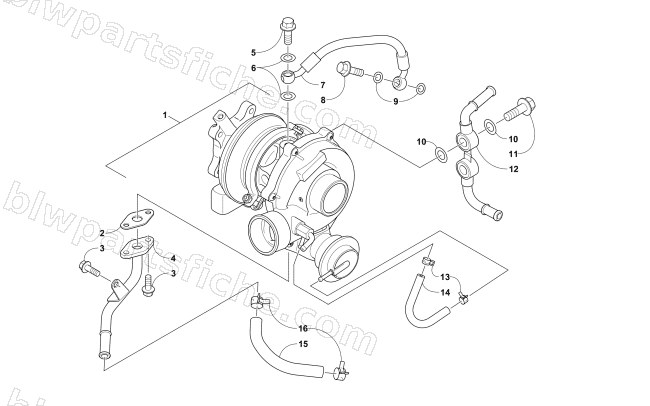

2018 Arctic Cat XF 9000 CROSS COUNTRY LTD 137 — TURBOCHARGER ASSEMBLY
2018 XF 9000 CROSS COUNTRY LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3020-392 | SCREW, CAP-HFH M6X1X12 | 1 | $0.81 | |
| 5 | 3020-413 | BOLT,UNION | 1 | $8.96 | |
| 7 | 3020-404 | TUBE,OIL-TURBO | 1 | $81.95 | |
| 9 | 3020-181 | GASKET | 1 | $4.40 | |
| 16 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 |
