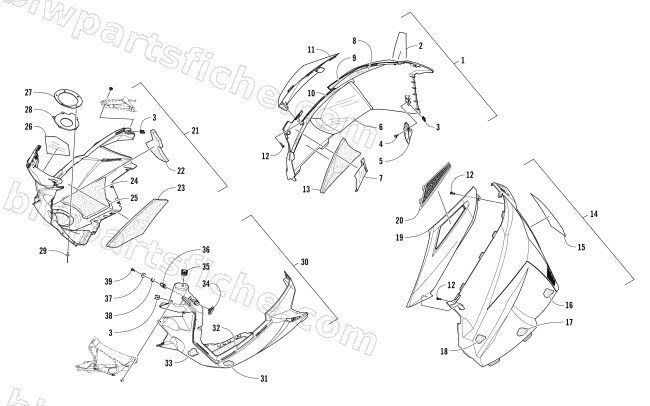

2018 Arctic Cat XF 9000 CROSS COUNTRY LTD 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2018 XF 9000 CROSS COUNTRY LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-626 | PANEL,SIDE-RH BLK-W/DECAL (9000 CC) | 1 | $374.95 | |
| 1 | 5718-030 | PANEL,SIDE-RH BLK-W/WARNING DECAL | 1 | $339.95 | |
| 3 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 7 | 3612-322 | FOIL,HEAT-SIDE PANEL-UPR FWD-RH | 1 | $10.97 | |
| 8 | 3612-324 | FOIL,HEAT-SIDE PANEL-UPR RH | 1 | $10.97 | |
| 14 | 5718-627 | PANEL,SIDE-LH BLK-W/DECAL (9000 CC) | 1 | $227.95 | |
| 14 | 5718-031 | PANEL,SIDE-LH BLK-W/WARNING DECAL | 1 | $149.95 | |
| 19 | 5718-618 | PANEL,SIDE-UPR RH BLK-W/DECAL | 1 | $122.95 | |
| 19 | 5718-619 | PANEL,SIDE-UPR LH BLK-W/DECAL | 1 | $122.95 | |
| 25 | 3612-326 | FOIL,HEAT-SKID PLATE | 1 | $19.25 | |
| 26 | 3612-330 | FOIL,HEAT-SKID PLATE | 1 | $2.88 | |
| 29 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 39 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
