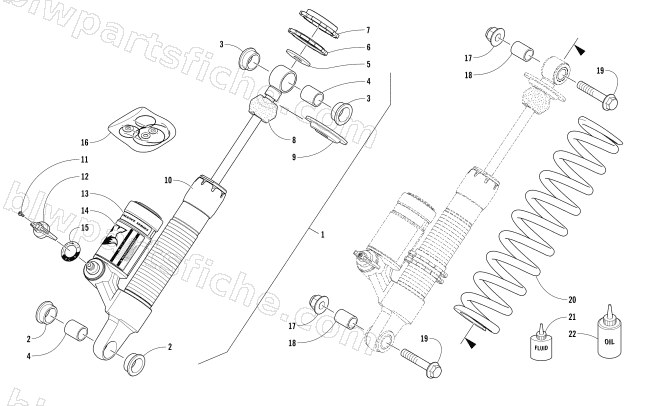

2018 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2018 XF 8000 HIGH COUNTRY LTD ES 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3704-216 | SHOCK,REAR- 17.01" QSL HC | 1 | $737.95 | |
| 2 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 3 | 3603-283 | BUSHING,EYELET-1.20" X 1.015" X .824 ID | 1 | $26.95 | |
| 4 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 5 | 3603-028 | WASHER, .501 ID X 1.500 OD X 0.125 THK | 1 | $12.95 | |
| 6 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 7 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 8 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 9 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 10 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 11 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 13 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 17 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 18 | 3604-846 | SLEEVE,SHOCK EYELET-8mm ID | 1 | $2.47 | |
| 19 | 8413-845 | SCREW,CAP-HFH M8X1.25X45 CL10.9 SILV | 1 | $0.26 | |
| 20 | 2704-010 | SPRING,COMP 210 LB X 12.75"-PTD (BLK) | 1 | $75.95 | |
| 21 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 22 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
