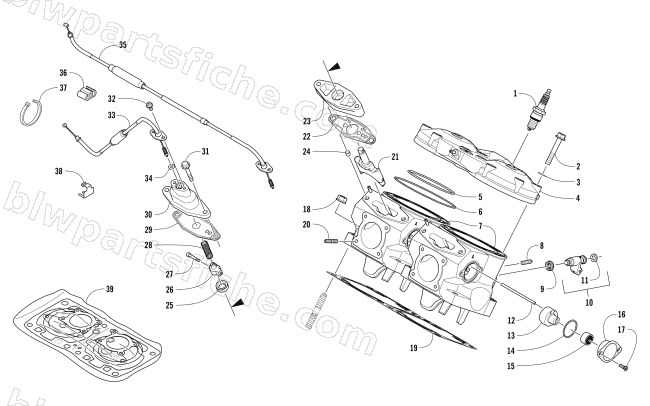

2018 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 141 — CYLINDER AND HEAD ASSEMBLY
2018 XF 8000 HIGH COUNTRY LTD ES 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0217-762 | SPARK PLUG-BPR9ES | 1 | $4.82 | |
| 2 | 0923-012 | SCREW,CAP-HFH M8X1.25X50 CL10.9 | 1 | $2.06 | |
| 3 | 0930-019 | O-RING, 7.59 X 2.62-NBR | 1 | $2.19 | |
| 4 | 1904-004 | HEAD, CYLINDER-800-ASSY | 1 | $258.95 | |
| 7 | 1904-003 | CYLINDER,800RCW-ASSY | 1 | $1,295.95 | |
| 8 | 0923-046 | STUD, M6-FUEL RAIL | 1 | $20.63 | |
| 9 | 0930-032 | SEAL, INJECTOR TIP | 1 | $9.59 | |
| 11 | 0930-036 | O-RING, INJECTOR BASE | 1 | $19.25 | |
| 18 | 0923-029 | NUT,HEX FLANGE-M10X1.25 CL8.8 | 1 | $1.23 | |
| 20 | 0923-053 | STUD, M6X12-EXHAUST MANIFOLD | 1 | $1.23 | |
| 22 | 0930-022 | GASKET,EXHAUST VALVE CASE | 1 | $24.95 | |
| 23 | 1909-001 | PLATE, EXHAUST VALVE W/SEAL & DOWELS | 1 | $117.95 | |
| 24 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 25 | 0930-001 | R/B 0930-059 | 1 | $14.95 | |
| 26 | 0909-041 | CLAMP, EXHAUST VALVE (10mm ID) | 1 | $27.95 | |
| 27 | 0923-005 | PIN,EXHAUST VALVE | 1 | $26.95 | |
| 28 | 0909-020 | SPRING, VALVE CABLE | 1 | $3.44 | |
| 29 | 0930-010 | GASKET,EXHAUST VALVE COVER | 1 | $22.01 | |
| 30 | 0909-018 | COVER,EXHAUST VALVE-MACH | 1 | $26.95 | |
| 31 | 0923-021 | SCREW,CAP-HFH M6X1X40 CL8.8 | 1 | $2.75 | |
| 32 | 0923-002 | SCREW,CAP-TSRDWH M5X.8X12 CL 10.9 | 1 | $0.55 | |
| 34 | 0930-008 | O-RING,5.23 X 2.62-NBR | 1 | $1.09 | |
| 36 | 0909-001 | CLAMP,EXHAUST VALVE CABLE | 1 | $6.75 | |
| 37 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 38 | 0909-002 | HOLDER,EXHAUST VALVE CABLE | 1 | $16.49 | |
| 39 | 7639-735 | TOP END GASKET SET- 800 C-TEC2 | 1 | $328.95 | |
| 39 | 7639-734 | COMPLETE OVERHAUL GASKET SET- 800 C-TEC2 | 1 | $515.95 |
