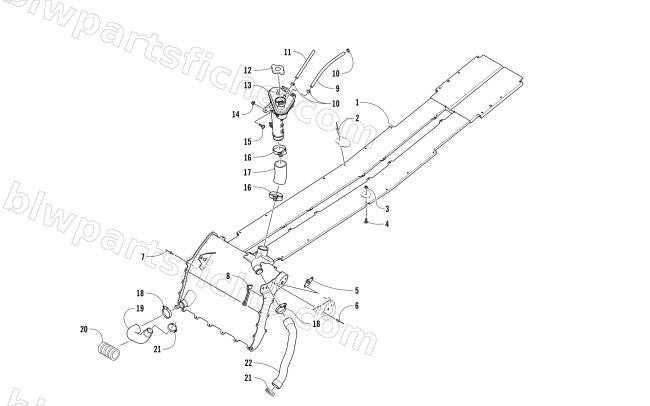

2018 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 141 — COOLING ASSEMBLY
2018 XF 8000 HIGH COUNTRY LTD ES 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0713-115 | EXCH,HEAT-2 STRK 141"-WELD'T | 1 | $648.95 | |
| 2 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 2 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 3 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 4 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 5 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 6 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 6 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 8 | 0613-272 | BUMPER,PROTECTOR-COOLANT HOSE | 1 | $4.40 | |
| 9 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 10 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 11 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 11 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 12 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 13 | 0613-135 | TANK,COOLANT | 1 | $29.95 | |
| 14 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 15 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 16 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 17 | 0610-936 | HOSE,COOLANT-EXCH/TANK | 1 | $26.95 | |
| 18 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 19 | 0610-864 | HOSE,COOLANT-ENGINE TO EXCH | 1 | $17.87 | |
| 20 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 21 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 22 | 0613-191 | HOSE,COOLANT-TANK/ENGINE | 1 | $27.95 |
