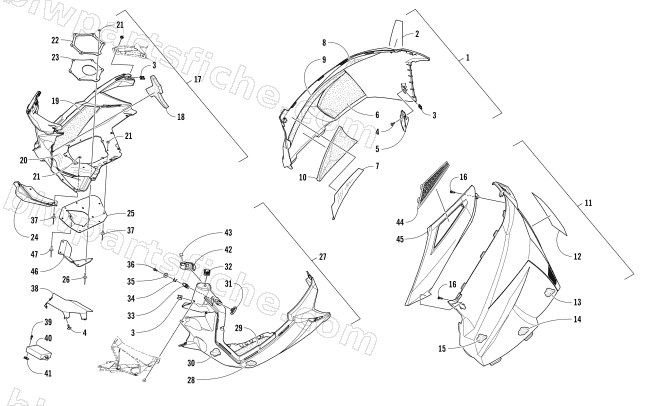

2018 Arctic Cat XF 8000 CROSS COUNTRY LTD ES 137 EARLY BUILD — SKID PLATE AND SIDE PANEL ASSEMBLY
2018 XF 8000 CROSS COUNTRY LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-624 | PANEL,SIDE-RH BLK-W/DECAL (8000 CC) | 1 | $287.95 | |
| 1 | 5718-306 | PANEL,SIDE-RH BLK-W/WARNING DECAL-2 STRK | 1 | $266.95 | |
| 3 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 11 | 5718-625 | PANEL,SIDE-LH BLK-W/DECAL (8000 CC) | 1 | $287.95 | |
| 11 | 5718-031 | PANEL,SIDE-LH BLK-W/WARNING DECAL | 1 | $149.95 | |
| 20 | 3612-328 | FOIL,HEAT-SKID PLATE | 1 | $9.59 | |
| 21 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 22 | 3612-232 | PLATE,EXHAUST OUTLET | 1 | $13.73 | |
| 26 | 8061-712 | RIVET,BLIND-LF SS73 BLACK | 1 | $0.81 | |
| 32 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 36 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 39 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 40 | 0730-248 | ECM,PROGRAMMED-9T/2.86P 8DSI | 1 | $2,029.95 | |
| 41 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 42 | 7606-654 | BUMPER,PROTECTOR-RUBBER-8000 | 1 | $25.95 | |
| 43 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 45 | 5718-618 | PANEL,SIDE-UPR RH BLK-W/DECAL | 1 | $122.95 | |
| 45 | 5718-619 | PANEL,SIDE-UPR LH BLK-W/DECAL | 1 | $122.95 | |
| 46 | 2712-103 | DEFLECTOR,EXHAUST OUTLET-OUTER-PTD BLK | 1 | $41.95 | |
| 47 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
