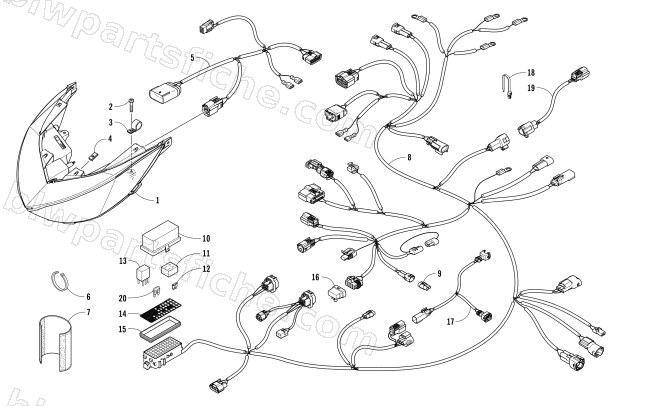

2018 Arctic Cat XF 8000 CROSS COUNTRY LTD ES 137 EARLY BUILD — HEADLIGHT AND WIRING ASSEMBLIES
2018 XF 8000 CROSS COUNTRY LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 3 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 4 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 6 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 6 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 6 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 7 | 6706-704 | WRAP,WIRE HARNESS-10" X 10.50" (HI TEMP) | 1 | $65.95 | |
| 9 | 0630-325 | PLUG,DIAGNOSTIC CONNECTOR | 1 | $33.95 | |
| 10 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 11 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 12 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 12 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 12 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 12 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 13 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 14 | 3621-615 | DECAL,PWR DISTRIB MODULE-1686-785/786 | 1 | $43.95 | |
| 15 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 16 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 17 | 1686-663 | HARNESS,INJECTOR-600R-CWI | 1 | $149.95 | |
| 18 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 19 | 1686-692 | HARNESS, EXTENSION-TAILIGHT-1725MM | 1 | $30.95 | |
| 20 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 |
