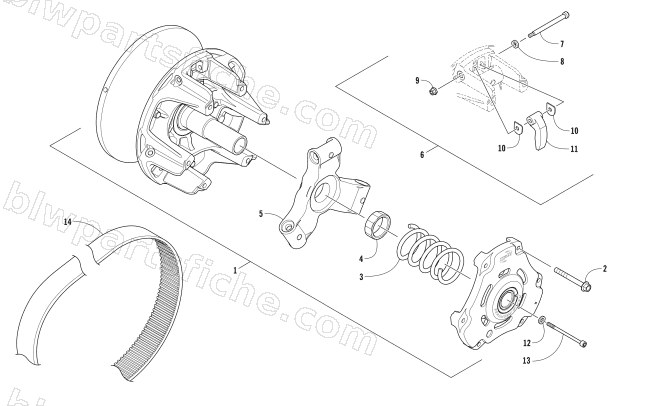

2018 Arctic Cat XF 8000 CROSS COUNTRY LTD ES 137 EARLY BUILD — DRIVE CLUTCH
2018 XF 8000 CROSS COUNTRY LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0746-888 | CLUTCH,DR.UNCAL-TEAM-HDI33MM (423223) | 1 | $913.95 | |
| 4 | 0646-979 | NUT, JAM 1/4-12 UNF-2B, LENGTH 0.835 | 1 | $33.95 | |
| 5 | 0646-956 | SUBASSEMBLY,SPIDER TP-203-HDI STD RH | 1 | $425.95 | |
| 7 | 0823-396 | SCREW,SHOULDER-HEX SKT .25X2.5 | 1 | $12.35 | |
| 8 | 2623-091 | WASHER, FLAT .500 X .250 X .130 NYLON | 1 | $5.65 | |
| 9 | 0823-399 | NUT,LOCK HEX #10-24 FLEXLOCK | 1 | $9.59 | |
| 10 | 0646-880 | WASHER,FLYWEIGHT THRUST .252X.830X.050 | 1 | $20.63 | |
| 12 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 13 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 |
