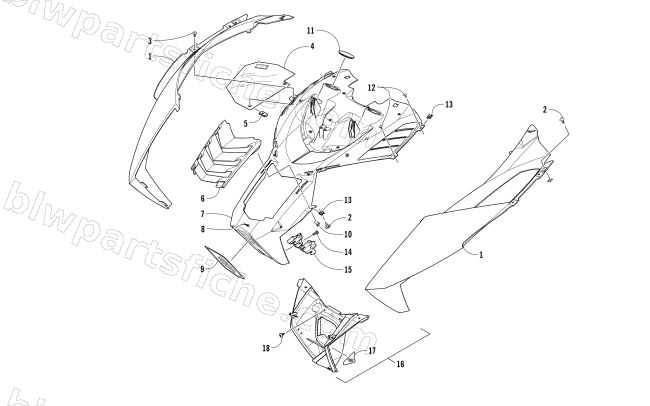

2018 Arctic Cat PANTERA 7000 LTD — HOOD ASSEMBLY
2018 PANTERA 7000 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-712 | HOOD,GRAY-RH W/DECALS | 1 | $256.95 | |
| 1 | 5718-713 | HOOD,GRAY-LH W/DECALS | 1 | $208.95 | |
| 1 | 7606-590 | HOOD,MAIN-RH DYNAMIC GRAY | 1 | $169.95 | |
| 1 | 7606-591 | HOOD,MAIN-LH DYNAMIC GRAY | 1 | $169.95 | |
| 4 | 1712-899 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 5 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 6 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 7 | 6606-510 | PLENUM,AIR INTAKE-UPPER-ROUTED | 1 | $228.95 | |
| 8 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 9 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 10 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 13 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 14 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 15 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 16 | 5706-992 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7) | 1 | $77.95 | |
| 17 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 |
