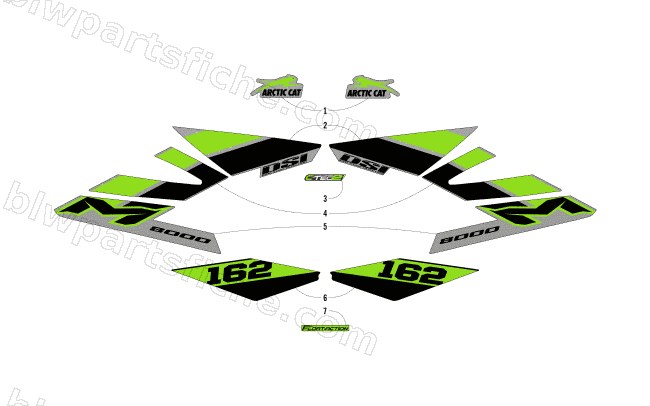

2018 Arctic Cat M 8000 SNO PRO 162 EARLY RELEASE — DECALS
2018 M 8000 SNO PRO 162 EARLY RELEASE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4621-270 | DECAL,HOOD-FWD UPR RH | 1 | $4.54 | |
| 1 | 4621-271 | DECAL,HOOD-FWD UPR LH | 1 | $4.54 | |
| 2 | 4621-268 | DECAL,HOOD-RR LWR-RH | 1 | $20.63 | |
| 2 | 4621-269 | DECAL,HOOD-RR LWR-LH | 1 | $20.63 | |
| 3 | 3621-767 | DECAL,"CTEC2"-MED GRN | 1 | $15.11 | |
| 4 | 4621-280 | DECAL,SIDE PANEL-UPPER-RH | 1 | $23.39 | |
| 4 | 4621-281 | DECAL,SIDE PANEL-UPPER-LH | 1 | $23.39 | |
| 5 | 4621-282 | DECAL,SIDE PANEL-MID-UPR-RH "M 8000" | 1 | $30.95 | |
| 5 | 4621-283 | DECAL,SIDE PANEL-MID-UPR-LH "M 8000" | 1 | $30.95 | |
| 6 | 4621-286 | DECAL,TUNNEL-RH 162" | 1 | $45.95 | |
| 6 | 4621-287 | DECAL,TUNNEL-LH 162" | 1 | $45.95 | |
| 7 | 3621-691 | DECAL,FLOAT ACTION | 1 | $17.87 |
