FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY

2018 M 8000 SE ES 153

Scroll / pinch to zoom · drag to pan · double-click resets

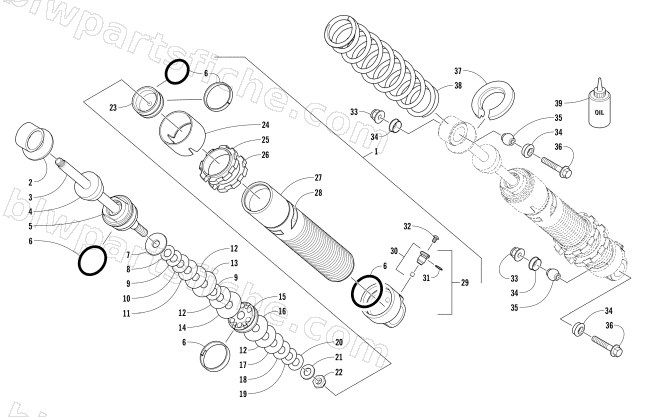

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY diagram

#	Part No.	Description	Qty	Price
2	2603-020	EYELET,SHOCK-SKI-FORGED	1	$73.95
4	3604-740	BUMPER,SHOCK - NBR70	1	$16.49
5	4604-126	BEARING, ENDCAP - LONG - W/BLEED ASSY	1	$49.95
6	4604-121	SEAL/BEARING - REBUILD KIT-37MM	1	$58.95
7	3604-789	WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK	1	$3.95
8	3603-096	VALVE,SHOCK-17.78 OD X 0.3 (9.6 ID)	1	$5.95
9	3603-104	VALVE,SHOCK-20.32 OD X 0.2 (9.6ID)	1	$6.95
10	3603-114	VALVE,SHOCK-22.86 OD X 0.2 (9.6 ID)	1	$6.95
11	3603-124	VALVE,SHOCK-25.4 OD X 0.2 (9.6 ID)	1	$6.95
12	3603-144	VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID)	1	$6.95
13	3603-175	VALVE,SHOCK-31.75 OD X .25 (9.6 ID)	1	$6.95
14	3603-184	VALVE,SHOCK-33.02 OD X 0.2 (9.6 ID)	1	$6.95
15	2603-996	PISTON, 37 BORE-2.05 ORIFICE	1	$44.95
16	3603-174	VALVE,SHOCK-31.75 OD X .2 (9.6 ID)	1	$6.95
17	3603-125	VALVE,SHOCK-25.4 OD X .25 (9.6 ID)	1	$6.95
18	3603-115	VALVE,SHOCK-22.86 OD X .25 (9.6 ID)	1	$6.95
19	3603-105	VALVE,SHOCK-20.32 OD X .25 (9.6 ID)	1	$6.95
20	3603-102	VALVE,SHOCK-20.32 OD X 0.15 (9.6 ID)	1	$5.95
21	3604-775	WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID)	1	$3.95
22	3604-739	NUT, HEX - 3/8"-24UNF	1	$4.95
23	3604-772	PISTON.FLOAT-ASSY	1	$35.95
24	3604-773	GUIDE,SPRING-ALUM BODY	1	$32.95
25	2603-014	RING,PRELOAD LOCK-SHOULDERED	1	$53.95
26	3604-779	RING,PRELOAD LOCK	1	$45.95
27	3604-755	BODY SHOCK-ALUM-37 BORE-208MM	1	$125.95
28	1621-728	DECAL,WARNING-HIGH PRESSURE SHOCK	1	$3.44
29	2704-257	BODY,CAP-ALUM BODY-ASSY	1	$164.95
32	3604-750	SCREW.MACH-#8-32 X 5mm-SS	1	$2.47
33	8437-804	NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV	1	$0.81
34	3603-260	BUSHING,SHOCK-SPHERICAL-BLK	1	$3.44
35	3603-261	AXLE,SHOCK - SPHERICAL	1	$16.49
36	8413-850	SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV	1	$3.44
37	3604-200	RETAINER,SPRING-POWDER METAL	1	$6.06
39	5639-530	SEMI-SYN SHOCK OIL-1 QUART	1	$26.95
