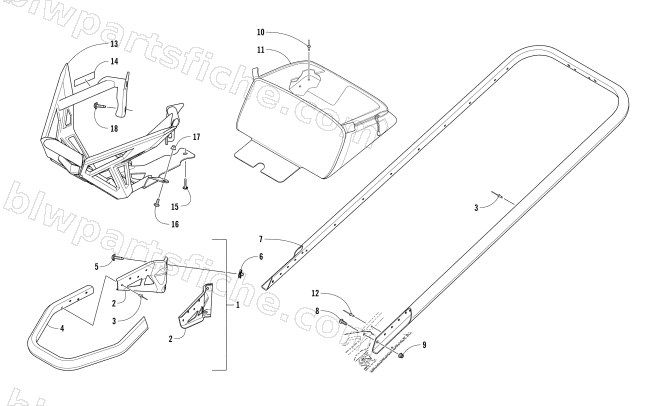

2018 Arctic Cat M 8000 MOUNTAIN CAT ES 162 — BUMPERS AND STORAGE
2018 M 8000 MOUNTAIN CAT ES 162
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 2 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 7 | 2707-596 | BUMPER,REAR-162"-PTD-BLK | 1 | $164.95 | |
| 8 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 11 | 7606-584 | BAG,TUNNEL-MTN STORAGE | 1 | $106.95 | |
| 12 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 14 | 4621-772 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 16 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 17 | 8427-605 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 RIE BLK | 1 | $1.50 |
