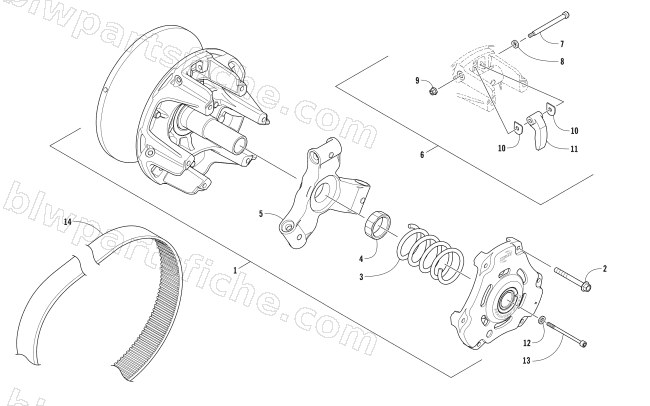

2018 Arctic Cat M 8000 MOUNTAIN CAT ES 153 — DRIVE CLUTCH
2018 M 8000 MOUNTAIN CAT ES 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0746-885 | CLUTCH,DRIVE-UNCAL-HDI33MM (423215) | 1 | $1,104.95 | |
| 3 | 0646-473 | SPRING,DRIVE-120/265 LB | 1 | $106.95 | |
| 4 | 0646-982 | NUT, JAM 1 1/4-12 UNF-2B, LENGTH 0.715 | 1 | $33.95 | |
| 5 | 0646-956 | SUBASSEMBLY,SPIDER TP-203-HDI STD RH | 1 | $425.95 | |
| 7 | 0823-396 | SCREW,SHOULDER-HEX SKT .25X2.5 | 1 | $12.35 | |
| 8 | 2623-091 | WASHER, FLAT .500 X .250 X .130 NYLON | 1 | $5.65 | |
| 9 | 0823-399 | NUT,LOCK HEX #10-24 FLEXLOCK | 1 | $9.59 | |
| 10 | 0646-880 | WASHER,FLYWEIGHT THRUST .252X.830X.050 | 1 | $20.63 | |
| 11 | 0646-905 | ARM,CAM-TEAM-J14-70 GRAM | 1 | $62.95 | |
| 12 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 13 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 |
