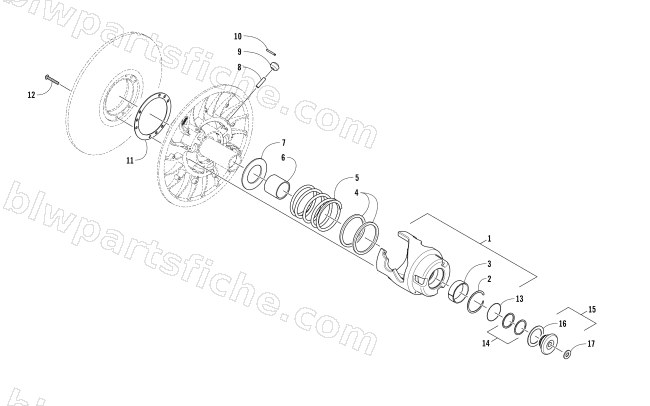

DRIVEN CLUTCH
2018 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-311 | CLUTCH,DRIVEN-10.4(44/40N ORN) | 1 | $735.95 | |
| 1 | 0748-714 | CAM,DRIVEN-44/40 DEG (N) W/BRG-ASSY | 1 | $249.95 | |
| 2 | 0648-433 | RING,SNAP-1 3/4 VH175 | 1 | $3.02 | |
| 3 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 4 | 0648-713 | SEAT, SPRING-DRIVEN | 1 | $3.57 | |
| 5 | 0648-774 | SPRING,DRIVEN-175-280-ORANGE | 1 | $27.95 | |
| 6 | 0648-806 | SPACER,ACT DRIVEN-CASTED CAM | 1 | $3.99 | |
| 7 | 0648-453 | SEAT,SPRING-DRVN | 1 | $7.03 | |
| 8 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 9 | 0648-139 | ROLLER,DRIVEN CLUTCH | 1 | $12.35 | |
| 10 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 11 | 0637-322 | UPDATE KIT,TORQUE BRACKET RETAINER | 1 | $19.25 | |
| 12 | 1623-517 | SCREW,MACH-TSBH 10-24X1.25 W/2353 | 1 | $3.80 | |
| 13 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 14 | 0648-715 | WASHER, DRIVEN .030 THICK | 1 | $1.23 | |
| 14 | 0648-716 | WASHER, DRIVEN .060 THICK | 1 | $3.44 | |
| 14 | 0648-714 | WASHER, DRIVEN .090 THICK | 1 | $2.06 | |
| 15 | 1702-114 | KIT,ADJUSTER-SHEAVE W/WASHER | 1 | $32.95 | |
| 16 | 0648-788 | WASHER,THRUST-DRIVEN ADJUSTER | 1 | $1.92 | |
| 17 | 8450-127 | WASHER,FLAT-M8-9.12 X 18.80 X 2.30Z&Y | 1 | $0.95 |
