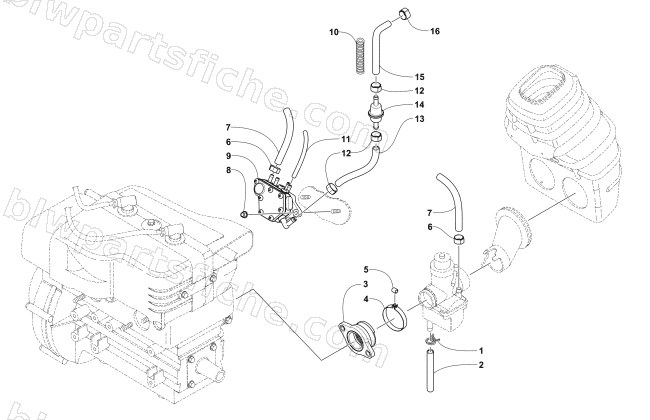

CARBURETOR AND FUEL PUMP ASSEMBLY
2018 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 2 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 3 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 4 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 5 | 6505-819 | SCREW,5X25 | 1 | $1.95 | |
| 6 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 7 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 8 | 0610-772 | HOSE,GASOLINE-25' | 1 | $252.95 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 1670-262 | PUMP,FUEL - (ATP-1-100) | 1 | $75.95 | |
| 11 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 12 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 13 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 14 | 0610-691 | R/B 0610-971 | 1 | $61.95 | |
| 15 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 16 | 0610-937 | HOSE,FUEL-FILTER TO TANK-FORMED | 1 | $13.73 | |
| 17 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 |
