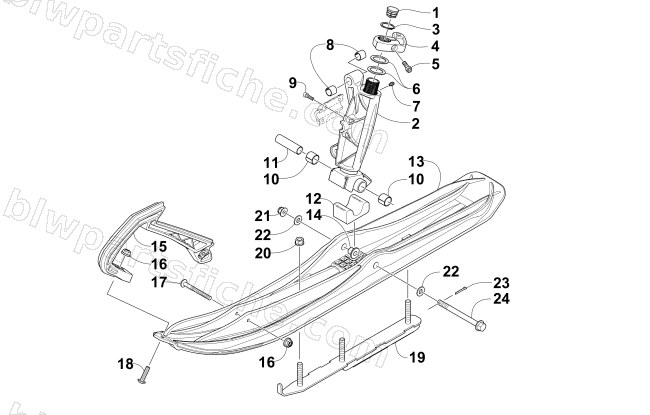

SKI AND SPINDLE ASSEMBLY
2018 LYNX 2000 LT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 2 | 2703-372 | SPINDLE,RH-BLK-FABR | 1 | $343.95 | |
| 2 | 2703-373 | SPINDLE,LH-BLK-FABR | 1 | $343.95 | |
| 3 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 4 | 4706-116 | ARM,SPINDLE-RH-PLAT | 1 | $58.95 | |
| 4 | 4706-117 | ARM,SPINDLE-LH-PLAT | 1 | $58.95 | |
| 5 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 6 | 2603-382 | WASHER,THRUST-SPINDLE WELD'T-.030 | 1 | $2.75 | |
| 7 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 8 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 9 | 1623-582 | SCREW, CAP-HSH M6 X1 X 20 CL 12.9 | 1 | $2.95 | |
| 10 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 11 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 12 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 13 | 2603-833 | R/B 3603-234 | 1 | $256.95 | |
| 14 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 15 | 2603-950 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 18 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 19 | 3603-502 | SKAG,SPLIT-3 BOLT-.312-RH-PTD BLK | 1 | $105.95 | |
| 19 | 3603-503 | SKAG,SPLIT-3 BOLT-.312"-LH-PTD BLK | 1 | $105.95 | |
| 20 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 21 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 22 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 23 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 24 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 |
