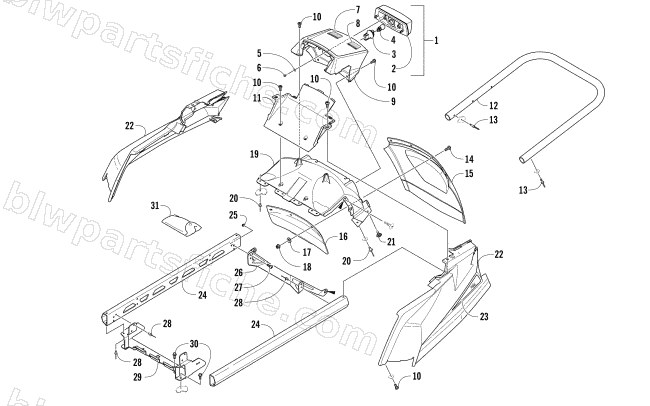

2018 Arctic Cat LYNX 2000 LT — REAR BUMPER, RACK RAIL, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2018 LYNX 2000 LT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 4 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 5 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 6 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 7 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 8 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 9 | 5606-063 | HOOD, TAILLIGHT-BLK | 1 | $57.95 | |
| 10 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 11 | 5606-065 | PANEL, TAILLIGHT ACCESS-MOLD BLK | 1 | $32.95 | |
| 12 | 1707-260 | BUMPER, REAR-PTD BLK | 1 | $142.95 | |
| 13 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 14 | 1623-782 | SCREW,MACH-TSTRH M6X1.0X20 RIE BLK | 1 | $1.92 | |
| 15 | 5606-254 | SNOWFLAP, BLK-W/8611-268 | 1 | $84.95 | |
| 16 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 17 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 5606-056 | CLOSE-OFF, TUNNEL-MOLD BLK | 1 | $46.95 | |
| 20 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 22 | 2718-488 | FENDER,REAR-RH W/O DECAL (TOUR) | 1 | $62.95 | |
| 22 | 2718-489 | FENDER,REAR-LH W/O DECAL (TOUR) | 1 | $69.95 | |
| 23 | 8611-304 | DECAL,REFLECTOR-RED-RH (TOUR) | 1 | $20.63 | |
| 23 | 8611-305 | DECAL,REFLECTOR-RED-LH (TOUR) | 1 | $20.63 | |
| 24 | 4706-482 | RAIL, RACK-MACH | 1 | $92.95 | |
| 25 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 26 | 3706-989 | MOUNT, RAIL-REAR-PTD BLK | 1 | $102.95 | |
| 27 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 28 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 29 | 4706-017 | BRKT, RAIL MOUNT-FRT-PTD BLK | 1 | $82.95 | |
| 30 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 31 | 4706-072 | KIT,TOOL BAG ASSY (F3 CARB) | 1 | $29.95 |
