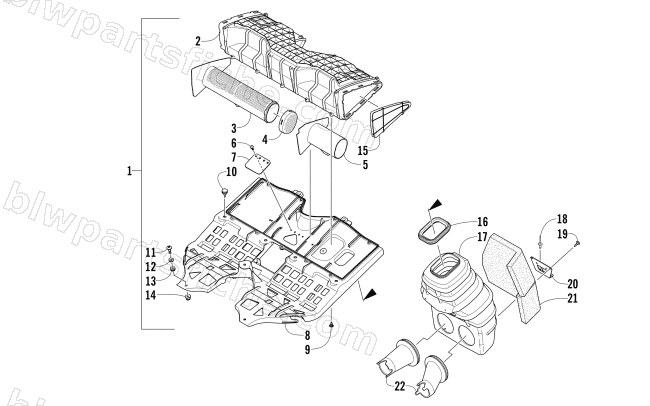

AIR SILENCER ASSEMBLY
2018 BEARCAT 2000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-980 | INTAKE,SUPPORT-F/C XT-ASSY | 1 | $244.95 | |
| 2 | 1670-732 | INTAKE SUPPORT - TOP | 1 | $66.95 | |
| 3 | 2670-240 | RESONATOR,UPR PLENUM-F/C-RH | 1 | $17.87 | |
| 4 | 2670-255 | CAP,RESONATOR-INTAKE | 1 | $17.87 | |
| 5 | 1670-853 | RESONATOR,UPR PLENUM-LH | 1 | $37.95 | |
| 6 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 7 | 2670-091 | FLAP,RUBBER INTAKE-CLOSE OFF | 1 | $4.95 | |
| 8 | 0770-885 | INTAKE SUPPORT-BOTTOM-BCXT-ROUTED | 1 | $148.95 | |
| 10 | 4606-276 | GROMMET,HEADLIGHT-REAR | 1 | $12.35 | |
| 11 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 12 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 13 | 4606-275 | GROMMET,HEADLIGHT-FRONT | 1 | $6.75 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 1670-831 | COVER,TOP PLENUM-LH | 1 | $13.73 | |
| 16 | 1670-942 | SEAL,AIR SILENCER-F/C | 1 | $24.77 | |
| 17 | 1670-941 | SILENCER,AIR-ROUTED-570 F/C | 1 | $124.95 | |
| 18 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 20 | 5606-598 | BRKT, MOUNTING-AIRBOX | 1 | $17.38 | |
| 21 | 0617-660 | FOAM,AIRBOX-LOWER | 1 | $37.95 | |
| 22 | 1670-944 | BOOT, AIR SILENCER-570 | 1 | $50.95 |
