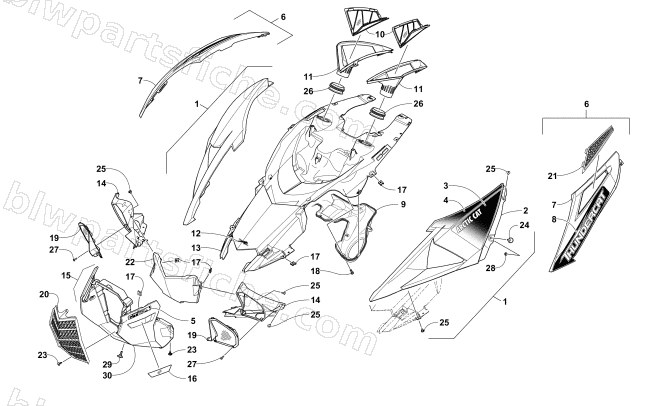

HOOD ASSEMBLY
2017 ZR 9000 THUNDERCAT 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 12 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 15 | 5718-263 | FASCIA,FRONT-TURBO-WHITE-W/DECAL | 1 | $75.95 | |
| 17 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 18 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 24 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 26 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 28 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 29 | 1423-060 | SCREW,SHOULDER TSTRH M6X1.0X25 RIE BL | 1 | $5.51 |
