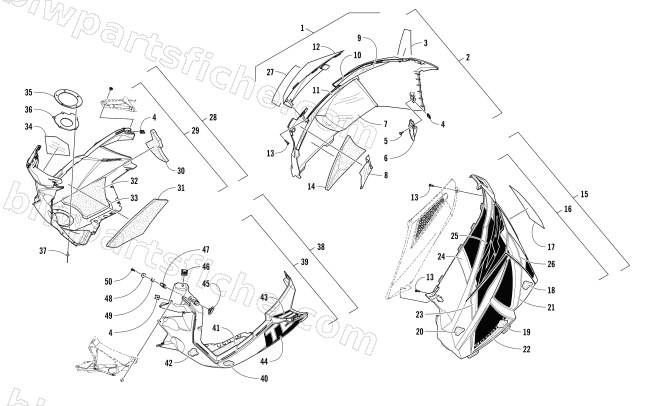

2017 Arctic Cat ZR 9000 RR 129 — SKID PLATE AND SIDE PANEL ASSEMBLY
2017 ZR 9000 RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-220 | PANEL,SIDE-RH TA GRN-W/DECALS (9000 RR) | 1 | $396.95 | |
| 2 | 5718-224 | PANEL,SIDE-RH TA GRN-W/WARNING DECAL | 1 | $296.95 | |
| 15 | 5718-221 | PANEL,SIDE-LH TA GRN-W/DECALS (9000 RR) | 1 | $296.95 | |
| 16 | 5718-225 | PANEL,SIDE-LH TA GRN-W/WARNING DECAL | 1 | $180.95 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 46 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 50 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
