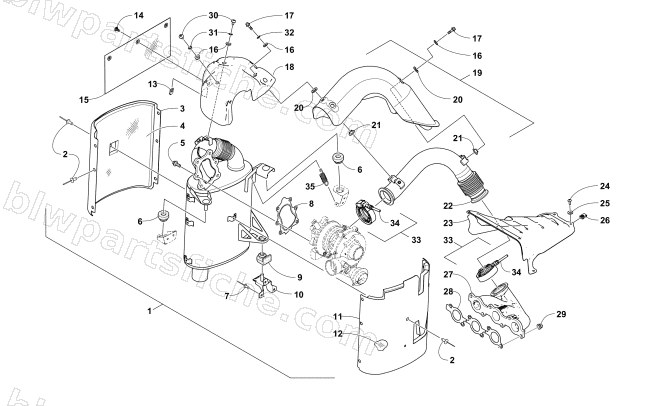

EXHAUST ASSEMBLY
2017 ZR 9000 RR 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2712-008 | RESONATOR,EXHAUST-FABR | 1 | $808.95 | |
| 2 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 6 | 2612-186 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $12.35 | |
| 7 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 8 | 3612-194 | GASKET,TURBO-EXHAUST FLANGE | 1 | $22.01 | |
| 9 | 2612-912 | GROMMET,RESONATOR MOUNT | 1 | $5.65 | |
| 10 | 1712-790 | BRKT,MOUNTING-LOWER-RESONATOR-PTD BLK | 1 | $19.25 | |
| 13 | 1623-052 | NUT,U | 1 | $0.95 | |
| 15 | 2712-061 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 16 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 19 | 2712-082 | SHIELD,HEAT-W/ISOLATOR | 1 | $170.95 | |
| 24 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 30 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 31 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 34 | 3612-272 | KIT,SERVICE-V-BAND EXHAUST CLAMP | 1 | $29.95 | |
| 35 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 |
