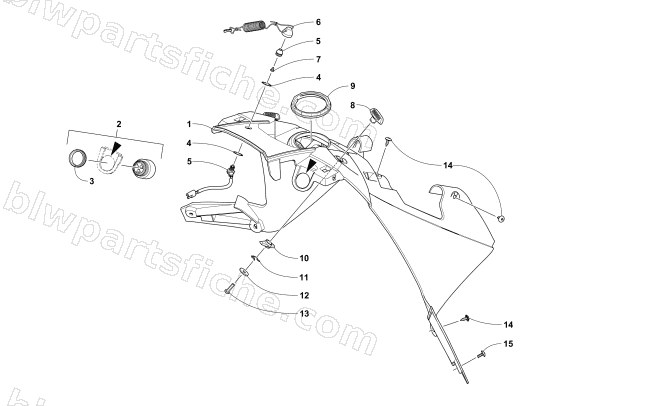

2017 Arctic Cat ZR 9000 RR 129 — CONSOLE ASSEMBLY
2017 ZR 9000 RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 3 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 4 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 5 | 0636-078 | R/B 0638-887 | 1 | $41.95 | |
| 6 | 0709-054 | TETHER SWITCH-ASSY (CLOSED) | 1 | $42.95 | |
| 7 | 0623-338 | SCREW,SELF TAP-PNHD #4 X 3/16 TYPE AB | 1 | $0.26 | |
| 9 | 6606-390 | NUT,RETAINING-CONSOLE | 1 | $2.06 | |
| 13 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
