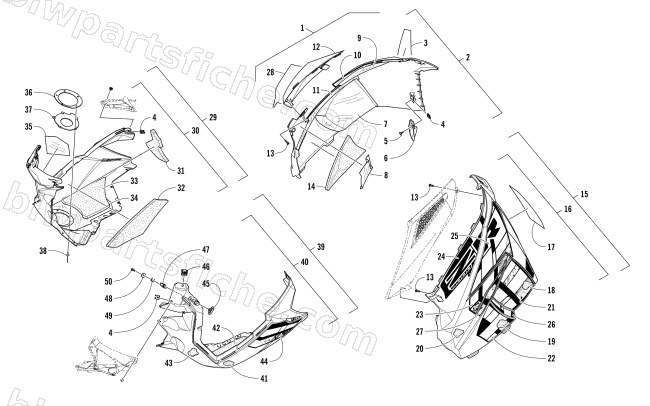

2017 Arctic Cat ZR 9000 LXR 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2017 ZR 9000 LXR 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-452 | PANEL,SIDE-RH BLK-W/DECAL(9000 LXR) | 1 | $518.95 | |
| 2 | 5718-030 | PANEL,SIDE-RH BLK-W/WARNING DECAL | 1 | $339.95 | |
| 15 | 5718-453 | PANEL,SIDE-LH BLK-W/DECAL(9000 LXR) | 1 | $328.95 | |
| 16 | 5718-031 | PANEL,SIDE-LH BLK-W/WARNING DECAL | 1 | $149.95 | |
| 24 | 3621-712 | DECAL,SIDE PANEL-UPR REAR-RH | 1 | $20.63 | |
| 24 | 3621-713 | DECAL,SIDE PANEL-UPR FWD-LH | 1 | $43.95 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 46 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 50 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
