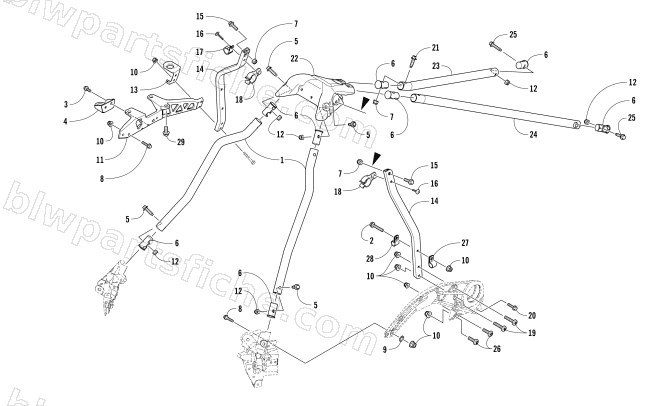

STEERING SUPPORT ASSEMBLY
2017 ZR 9000 LTD 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-568 | SPAR,UPR FRT-F5T-RH-PTD BLK | 1 | $34.95 | |
| 3 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 5 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 6 | 1607-680 | INSERT,UPPER SPAR-10MM MALE | 1 | $3.57 | |
| 7 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 8 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 9 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 14 | 1607-133 | SPAR,SUPPORT-STEERING-LH | 1 | $73.95 | |
| 15 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 2623-006 | CLAMP,CABLE-.625 INSUL-.03 MTG | 1 | $2.19 | |
| 18 | 0609-937 | CLIP,HARNESS-PLASTIC | 1 | $2.61 | |
| 19 | 8476-635 | SCREW,MACH-TSTRH M6X1.0X35 Z&Y | 1 | $20.63 | |
| 20 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 21 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 | |
| 25 | 8408-030 | SCREW,CAP-HFH M10X1.25X30 CL8.8 Z&Y | 1 | $1.78 | |
| 26 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 27 | 2623-083 | CLAMP,WIRE-.500IN-VINYL COATED | 1 | $1.50 | |
| 28 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 |
