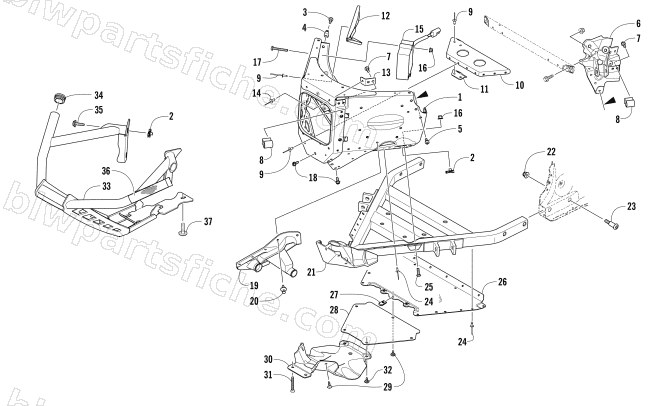

2017 Arctic Cat ZR 8000 EL TIGRE ES 137 — FRONT BUMPER AND FRAME ASSEMBLY
2017 ZR 8000 EL TIGRE ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-494 | PANEL,FRT-ASSY 10MM 4/6 RR-PTD BLK | 1 | $445.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 | |
| 4 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 5 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 6 | 1707-776 | HOUSING,A-ARM/SHOCK MTG-RH-PTD BLK | 1 | $106.95 | |
| 6 | 1707-777 | HOUSING,A-ARM/SHOCK MTG-LH-PTD BLK | 1 | $101.95 | |
| 7 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 8 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 9 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 10 | 1607-565 | BRKT,MTG-STEERING POST-LWR | 1 | $29.95 | |
| 11 | 1607-566 | BRKT,MTG-STEERING POST BRACE-LWR | 1 | $3.57 | |
| 12 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 13 | 1607-561 | GUSSET,MTG BRKT-UPR A-ARM | 1 | $1.78 | |
| 14 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 15 | 0630-322 | REGULATOR/RECTIFIER-ELECTRIC START | 1 | $220.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 8477-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&BLK | 1 | $1.50 | |
| 18 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 19 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 19 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 1707-844 | R/B 3707-130 | 1 | $435.95 | |
| 22 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 24 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 25 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 26 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 28 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 29 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 30 | 6606-614 | PLATE,SKID-CENTER | 1 | $13.73 | |
| 31 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 32 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 33 | 2707-273 | BUMPER,FRT PROCROSS-PTD TEAM ARC GRN | 1 | $333.95 | |
| 34 | 2623-080 | NUT,HEX FLG-TOP LOCK-M6X1.0 CL8 HI TEMP | 1 | $2.47 | |
| 35 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 36 | 2621-210 | DECAL,REFLECTOR-AMBER | 1 | $12.35 | |
| 37 | 1623-031 | R/B 2623-165 | 1 | $3.95 |
