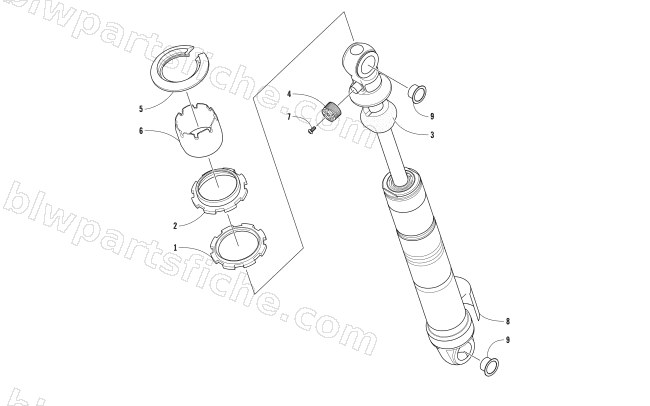

FRONT SUSPENSION SHOCK ABSORBER
2017 ZR 7000 SNO PRO 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 2 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 3 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 4 | 3603-386 | KNOB,DAMPING ADJUST-REBOUND | 1 | $7.30 | |
| 6 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 7 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 8 | 3603-570 | DECAL,BODY-W/WARNING-PERF SERIES 2" X 5" | 1 | $24.77 | |
| 9 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 10 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 |
