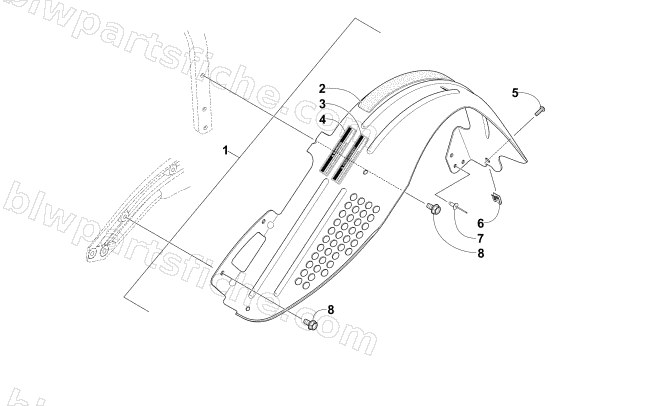

2017 Arctic Cat ZR 7000 SNO PRO 137 — BELT GUARD ASSEMBLY
2017 ZR 7000 SNO PRO 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-277 | GUARD,CLUTCH-7000 W/WARNING DECALS | 1 | $106.95 | |
| 2 | 0617-733 | PAD,RUBBER-25 X 160 X 1.6 | 1 | $2.06 | |
| 3 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
