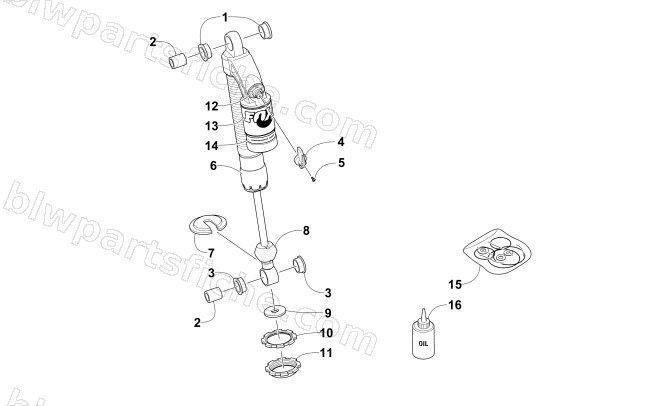

FRONT SUSPENSION SHOCK ABSORBER
2017 ZR 7000 LTD 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-476 | SHOCK, SKI 1.5" W/REMOTE COILOVER W/QS3 | 1 | $823.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 3603-283 | BUSHING,EYELET-1.20" X 1.015" X .824 ID | 1 | $26.95 | |
| 5 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 6 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 7 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 8 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 9 | 3603-028 | WASHER, .501 ID X 1.500 OD X 0.125 THK | 1 | $12.95 | |
| 10 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 11 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 14 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 16 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
