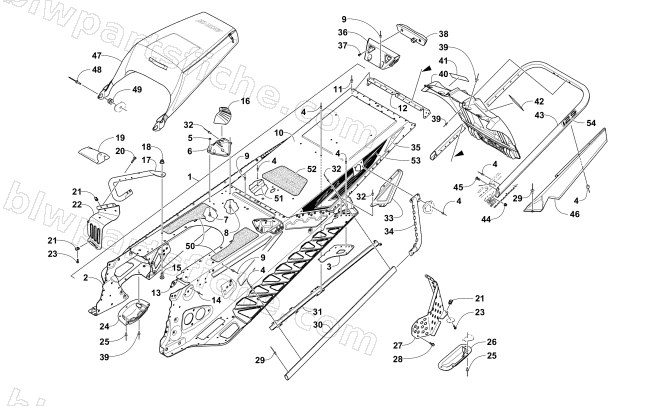

2017 Arctic Cat ZR 7000 EL TIGRE 129 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 ZR 7000 EL TIGRE 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2707-079 | CHASSIS,128" 4 STRK 5-PTD BLK | 1 | $2,312.95 | |
| 1 | 2707-399 | TUNNEL, ZR7-128-S/P ASSY-PTD BLK | 1 | $1,077.95 | |
| 2 | 2707-397 | TUNNEL,FRONT-ZR7-S/P ASSY-PTD BLK | 1 | $696.95 | |
| 3 | 1707-916 | BRKT,REAR SUSP-OUTER RH-PTD BLK | 1 | $22.01 | |
| 3 | 1707-917 | BRKT,REAR SUSP-OUTER LH-PTD BLK | 1 | $22.01 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 6 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 6 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 8 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 9 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 2707-395 | TUNNEL,REAR-128"-PTD BLK | 1 | $201.95 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 13 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 14 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 15 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 16 | 6606-664 | MOUNT,FUEL TANK-RUBBER-RH | 1 | $17.87 | |
| 16 | 6606-665 | MOUNT,FUEL TANK-RUBBER-LH | 1 | $17.87 | |
| 17 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 17 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 19 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 20 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 22 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 24 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 25 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 26 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 27 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 28 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 29 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 30 | 1707-899 | EDGE,RUNNING BOARD-PTD WHT | 1 | $54.95 | |
| 31 | 0630-315 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $27.95 | |
| 32 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 33 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 33 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 34 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 34 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 35 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 36 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 37 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 38 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 39 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 40 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 41 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 42 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 43 | 2707-580 | BUMPER,REAR-129"-PTD-TA GRN | 1 | $101.95 | |
| 44 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 45 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 46 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 46 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 47 | 7606-069 | SADDLEBAG,REAR-7000 AC | 1 | $238.95 | |
| 48 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 49 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 | |
| 50 | 6606-814 | PAD,FUEL TANK MOUNT-RH | 1 | $3.99 | |
| 50 | 6606-815 | PAD,FUEL TANK MOUNT-LH | 1 | $3.99 | |
| 52 | 6606-816 | PAD,TUNNEL-FUEL TANK | 1 | $12.35 |
