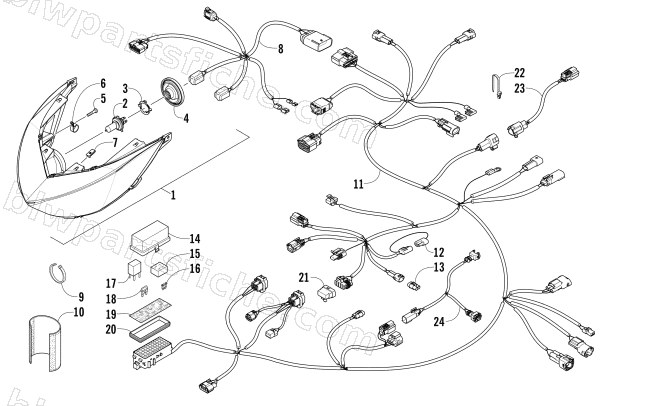

2017 Arctic Cat ZR 6000 SNO PRO ES 137 — HEADLIGHT AND WIRING ASSEMBLIES
2017 ZR 6000 SNO PRO ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0609-956 | BULB,H4 60/55 LL | 1 | $15.11 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 6 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 7 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 8 | 1686-706 | HARNESS, HOOD-CWI | 1 | $231.95 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 10 | 5706-618 | WRAP,WIRE HARNESS-11" X 10.50" | 1 | $22.01 | |
| 11 | 1686-742 | HARNESS, MAIN- DSI ES | 1 | $978.95 | |
| 12 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 13 | 0630-325 | PLUG,DIAGNOSTIC CONNECTOR | 1 | $33.95 | |
| 14 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 15 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 16 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 16 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 16 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 16 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 17 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 18 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 20 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 21 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 22 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 23 | 1686-692 | HARNESS, EXTENSION-TAILIGHT-1725MM | 1 | $30.95 | |
| 24 | 1686-663 | HARNESS,INJECTOR-600R-CWI | 1 | $149.95 |
