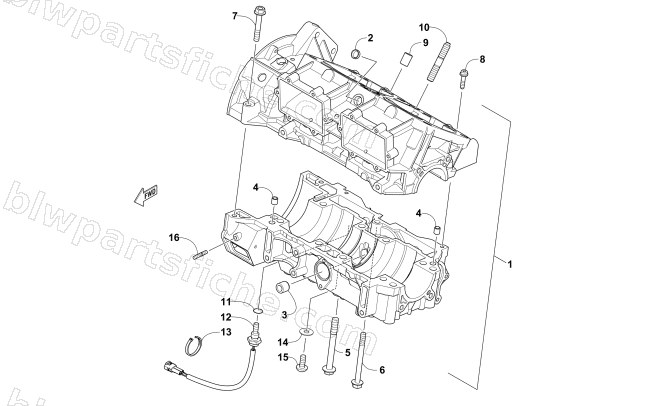

2017 Arctic Cat ZR 6000 RR ES 137 EARLY BUILD — CRANKCASE ASSEMBLY
2017 ZR 6000 RR ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1901-001 | CRANKCASE - 600 - MFG ASSY | 1 | $1,431.95 | |
| 2 | 0901-013 | PLUG, CASE | 1 | $5.37 | |
| 3 | 0901-004 | BUSH,OIL PUMP INPUT SHAFT | 1 | $3.02 | |
| 4 | 0929-003 | PIN,DOWEL-9mm DIA X 10mm LG | 1 | $22.01 | |
| 5 | 0923-034 | SCREW,CAP-HFH M10X1.25X90 CL 10.9 | 1 | $3.44 | |
| 6 | 0923-022 | SCREW,CAP-HFH M8X1X88 CL8.8 | 1 | $17.87 | |
| 7 | 0923-012 | SCREW,CAP-HFH M8X1.25X50 CL10.9 | 1 | $2.06 | |
| 8 | 0923-026 | SCREW,CAP-TSRDWH M6X1X25 CL 10.9 | 1 | $2.06 | |
| 9 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 11 | 0923-057 | GASKET, COPPER- 12X20X1.5 | 1 | $5.37 | |
| 12 | 0902-010 | SENSOR ASSY, COOLING WATER | 1 | $78.95 | |
| 13 | 0923-040 | CABLE TIE, MULTI-LOOP | 1 | $2.47 | |
| 14 | 0830-155 | SEAL,FASTENER | 1 | $3.16 | |
| 15 | 8468-613 | SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343 | 1 | $1.50 | |
| 16 | 0923-058 | STUD, M6 X 1 X 32-W/PATCH | 1 | $2.61 |
