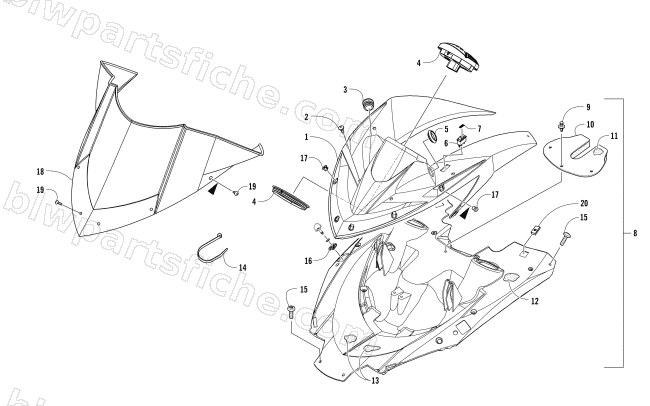

2017 Arctic Cat ZR 6000 R SX — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 3 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 5 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 6 | 0609-946 | SWITCH,TOGGLE-HEADLIGHT | 1 | $22.01 | |
| 7 | 1621-285 | DECAL,TOGGLE-HIGH/LOW | 1 | $4.07 | |
| 9 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 10 | 5706-633 | CLOSE OFF-W/FOAM | 1 | $20.63 | |
| 12 | 0617-694 | FOAM,AIR INTAKE-MIDDLE | 1 | $29.95 | |
| 13 | 0617-692 | FOAM,AIR INTAKE-RH | 1 | $37.95 | |
| 13 | 0617-693 | FOAM,AIR INTAKE-LH | 1 | $38.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 16 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 17 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 18 | 6606-702 | WINDSHIELD-LOW BLK-Z3 | 1 | $129.95 | |
| 19 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 20 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 |
