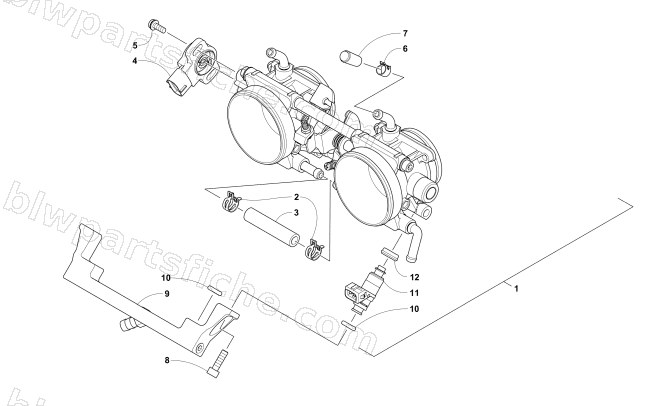

2017 Arctic Cat ZR 6000 R SX — THROTTLE BODY ASSEMBLY
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2900-077 | THROTTLE BODY-47mm 600R ASSY | 1 | $900.95 | |
| 2 | 6506-424 | HOSE | 1 | $10.97 | |
| 3 | 6506-338 | CLAMP,HOSE | 1 | $5.78 | |
| 4 | 6506-425 | SENSOR ASSY | 1 | $151.95 | |
| 5 | 6506-075 | SCREW | 1 | $3.16 | |
| 6 | 1623-234 | CLAMP, HOSE-13.08mm ID | 1 | $1.09 | |
| 7 | 0670-323 | PLUG,IMPULSE NIPPLE | 1 | $3.71 | |
| 8 | 1623-582 | SCREW, CAP-HSH M6 X1 X 20 CL 12.9 | 1 | $2.95 | |
| 10 | 0930-036 | O-RING, INJECTOR BASE | 1 | $19.25 | |
| 11 | 0910-009 | INJECTOR, DEKA V- 50244(600cwi) | 1 | $71.95 | |
| 12 | 0930-032 | SEAL, INJECTOR TIP | 1 | $9.59 |
