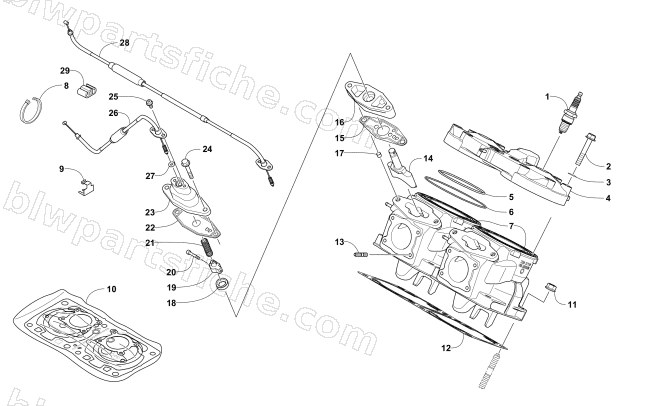

2017 Arctic Cat ZR 6000 R SX — CYLINDER AND HEAD ASSEMBLY
2017 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 6639-614 | R/B 8639-142 | 1 | $332.95 | |
| 1 | 0217-762 | SPARK PLUG-BPR9ES | 1 | $4.82 | |
| 2 | 0923-012 | SCREW,CAP-HFH M8X1.25X50 CL10.9 | 1 | $2.06 | |
| 3 | 0930-019 | O-RING, 7.59 X 2.62-NBR | 1 | $2.19 | |
| 4 | 1904-008 | HEAD, CYLINDER 600 R-ASSY | 1 | $306.95 | |
| 5 | 0930-018 | O-RING, 115.5 X 1.8-NBR | 1 | $2.47 | |
| 6 | 0930-020 | O-RING,85.8 X 2.4-FKM | 1 | $8.21 | |
| 7 | 1904-007 | CYLINDER, 600 R-ASSY | 1 | $1,457.95 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0909-002 | HOLDER,EXHAUST VALVE CABLE | 1 | $16.49 | |
| 10 | 6639-613 | R/B 8639-143 | 1 | $217.95 | |
| 11 | 0923-029 | NUT,HEX FLANGE-M10X1.25 CL8.8 | 1 | $1.23 | |
| 12 | 0930-049 | GASKET, CYLINDER BASE-600 | 1 | $45.95 | |
| 13 | 0923-053 | STUD, M6X12-EXHAUST MANIFOLD | 1 | $1.23 | |
| 15 | 0930-022 | GASKET,EXHAUST VALVE CASE | 1 | $24.95 | |
| 16 | 1909-001 | PLATE, EXHAUST VALVE W/SEAL & DOWELS | 1 | $117.95 | |
| 17 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 18 | 0930-001 | R/B 0930-059 | 1 | $14.95 | |
| 19 | 0909-041 | CLAMP, EXHAUST VALVE (10mm ID) | 1 | $27.95 | |
| 20 | 0923-005 | PIN,EXHAUST VALVE | 1 | $26.95 | |
| 21 | 0909-020 | SPRING, VALVE CABLE | 1 | $3.44 | |
| 22 | 0930-010 | GASKET,EXHAUST VALVE COVER | 1 | $22.01 | |
| 23 | 0909-018 | COVER,EXHAUST VALVE-MACH | 1 | $26.95 | |
| 24 | 0923-021 | SCREW,CAP-HFH M6X1X40 CL8.8 | 1 | $2.75 | |
| 25 | 0923-002 | SCREW,CAP-TSRDWH M5X.8X12 CL 10.9 | 1 | $0.55 | |
| 26 | 0909-019 | CABLE, EXHAUST VALVE-MAG | 1 | $94.95 | |
| 27 | 0930-008 | O-RING,5.23 X 2.62-NBR | 1 | $1.09 | |
| 28 | 0909-006 | CABLE, EXHAUST VALVE-PTO | 1 | $101.95 | |
| 29 | 0909-001 | CLAMP,EXHAUST VALVE CABLE | 1 | $6.75 |
