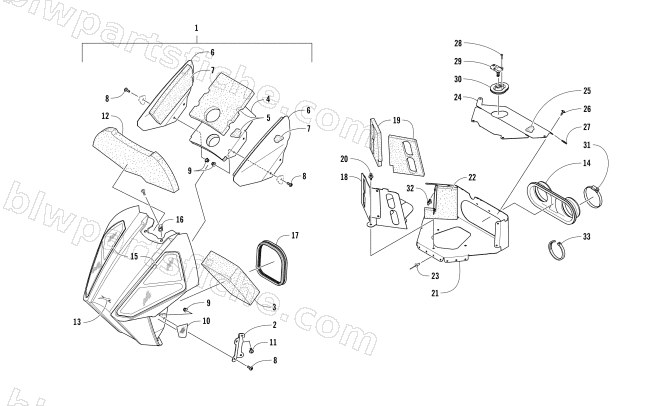

2017 Arctic Cat ZR 6000 R SX — AIR SILENCER ASSEMBLY
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-063 | SILENCER,AIR-FRT BUMPER-W/FOAM ASSY | 1 | $470.95 | |
| 2 | 1770-008 | BRKT,MTG-AIR SILENCER-RH PTD BLK | 1 | $17.87 | |
| 2 | 1770-009 | BRKT,MTG-AIR SILENCER-LH PTD BLK | 1 | $20.63 | |
| 3 | 0617-677 | FOAM,AIR SILENCER-FRT | 1 | $24.77 | |
| 4 | 2670-304 | BAFFLE,INTAKE-AIR SILENCER | 1 | $16.49 | |
| 5 | 0617-695 | FOAM,BAFFLE | 1 | $13.73 | |
| 6 | 2670-246 | PLATE,INTAKE-AIR SILENCER | 1 | $19.25 | |
| 7 | 0617-690 | FOAM,INTAKE PLATE-RH | 1 | $8.21 | |
| 7 | 0617-691 | FOAM,INTAKE PLATE-LH | 1 | $8.21 | |
| 8 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 9611-390 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 10 | 9611-391 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 11 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 12 | 0617-679 | FOAM,AIR SILENCER-REAR | 1 | $50.95 | |
| 13 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 15 | 6606-432 | SCREEN,AIR SILENCER-RH | 1 | $46.95 | |
| 15 | 6606-433 | SCREEN,AIR SILENCER-LH | 1 | $46.95 | |
| 16 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 17 | 0617-603 | SEAL,AIR SILENCER | 1 | $13.73 | |
| 18 | 2670-263 | CLOSE OFF,STEERING POST/LWR AIR SILENCER | 1 | $17.87 | |
| 19 | 0617-150 | FOAM,STEERING CLOSEOFF-RH | 1 | $6.47 | |
| 19 | 0617-151 | FOAM,STEERING CLOSEOFF-LH | 1 | $22.01 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 2670-589 | PLATE,AIR SILENCER-LWR | 1 | $82.95 | |
| 23 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 28 | 2623-016 | SCREW,SELF TAP-TSPNH 10-16X7/8 TYPE A SS | 1 | $1.78 | |
| 29 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 30 | 2670-444 | BOOT,T-MAP SENSOR | 1 | $53.95 | |
| 31 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 32 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 33 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
