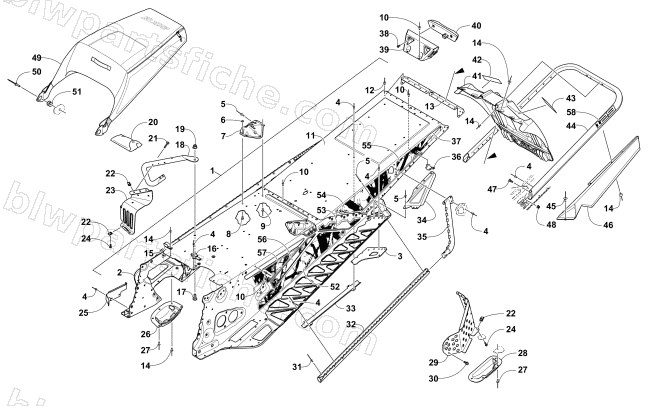

2017 Arctic Cat ZR 6000 LTD ES 129 EARLY BUILD — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 ZR 6000 LTD ES 129 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-793 | CHASSIS-128" 2 STRK-ASSY-PTD WHT | 1 | $2,563.95 | |
| 1 | 1707-914 | TUNNEL,HP-S/P ASSY-PTD WHT | 1 | $1,077.95 | |
| 2 | 1707-904 | BRKT,SPAR SUPPORT-RH-PTD WHT | 1 | $30.95 | |
| 3 | 1707-918 | BRKT,REAR SUSP-OUTER RH-PTD WHT | 1 | $22.01 | |
| 3 | 1707-919 | BRKT,REAR SUSP-OUTER LH-PTD WHT | 1 | $22.01 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-905 | BRKT,SPAR SUPPORT-LH-PTD WHT | 1 | $30.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 11 | 1707-837 | TUNNEL,REAR-128-PTD WHT | 1 | $203.95 | |
| 12 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 13 | 1707-834 | END CAP,TUNNEL-PTD WHT | 1 | $38.95 | |
| 14 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 | |
| 15 | 1623-762 | CLAMP,DOUBLE TUBE | 1 | $6.75 | |
| 16 | 0645-709 | CLIP,BATTERY CABLE | 1 | $5.09 | |
| 17 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 18 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 18 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 0744-087 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $90.95 | |
| 21 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 1707-802 | TOE STOP,RH - FORMED-PTD WHT | 1 | $29.95 | |
| 23 | 1707-803 | TOE STOP,LH - FORMED-PTD WHT | 1 | $29.95 | |
| 24 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 25 | 0608-705 | BRKT,ROUTING-OIL LINE | 1 | $12.35 | |
| 26 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 2707-084 | COVER,SHIELD-BRK DISC-PTD WHT | 1 | $53.95 | |
| 30 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 31 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 32 | 1707-899 | EDGE,RUNNING BOARD-PTD WHT | 1 | $54.95 | |
| 33 | 0630-308 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 34 | 1707-906 | GUSSET,RUNNING BOARD-RH-PTD WHT | 1 | $27.95 | |
| 34 | 1707-907 | GUSSET,RUNNING BOARD-LH-PTD WHT | 1 | $27.95 | |
| 35 | 1707-908 | GUSSET,TUNNEL-RH-PTD WHT | 1 | $30.95 | |
| 35 | 1707-909 | GUSSET,TUNNEL-LH-PTD WHT | 1 | $29.95 | |
| 36 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 37 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 38 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 39 | 0730-228 | HOUSING,TAILLIGHT-PTD WHT | 1 | $38.95 | |
| 40 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 41 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 42 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 43 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 44 | 2707-581 | BUMPER,REAR-129"-PTD-ORN | 1 | $101.95 | |
| 45 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 46 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 46 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 47 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 48 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 49 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 50 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 51 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
