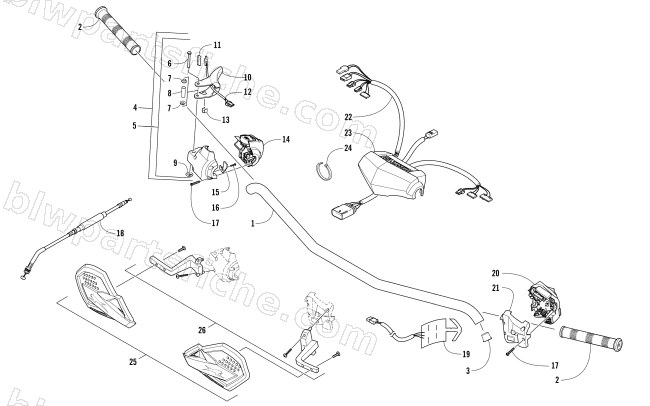

2017 Arctic Cat ZR 6000 EL TIGRE ES 137 — HANDLEBAR AND CONTROLS
2017 ZR 6000 EL TIGRE ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0609-888 | CONTROL,THROTTLE-R/H-REAR (36MM) | 1 | $105.95 | |
| 5 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 12 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 13 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 14 | 0609-880 | CONTROL, R/H-FRONT W/REV-2 STRK-2010 | 1 | $94.95 | |
| 15 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 16 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 17 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 18 | 0687-239 | CABLE,THROTTLE-DSI | 1 | $57.95 | |
| 19 | 0609-948 | ELEMENT,HW-RH H/L | 1 | $89.95 | |
| 19 | 0609-949 | ELEMENT,HW-LH H/L | 1 | $89.95 | |
| 20 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 21 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 22 | 1686-636 | HARNESS,HANDLEBAR-2 STRK | 1 | $131.95 | |
| 23 | 6606-129 | PAD,HANDLEBAR-BLK | 1 | $20.63 | |
| 24 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 5639-385 | R/B 5639-763 | 1 | $47.95 | |
| 27 | 0641-258 | PACKAGE,HARDWARE(7639-619) | 1 | $12.35 |
